Toyota PIXIS VAN — RADIO RECEIVER & AMPLIFIER & CONDENSER

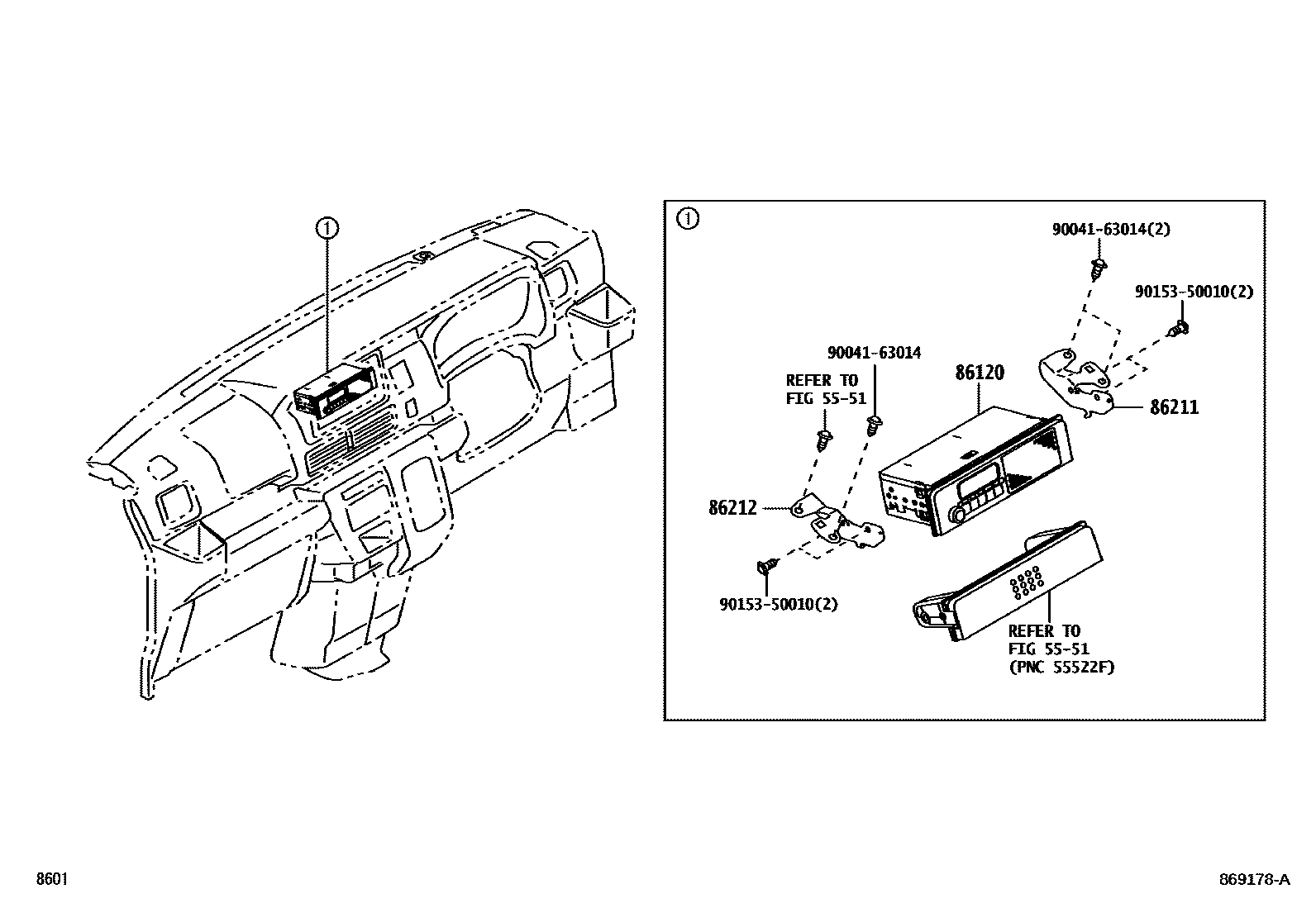

Parts diagram

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

86120RECEIVER ASSY, RADIO

main00000-00000i202112

main86180-B5110i202112

86211BRACKET, RADIO, NO.1

main86211-B5100i202112

main00000-00000i202112

86212BRACKET, RADIO, NO.2

main86212-B5100i202112

main00000-00000i202411

9004163014

main90041-63014

9015350010

main90153-50010

6 parts on this diagram · 1 diagram in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota PIXIS VAN

This section contains 6 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota PIXIS VAN. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, RECEIVER ASSY, RADIO, BRACKET, RADIO, NO.1, BRACKET, RADIO, NO.2.
