Toyota PIXIS VAN — METER

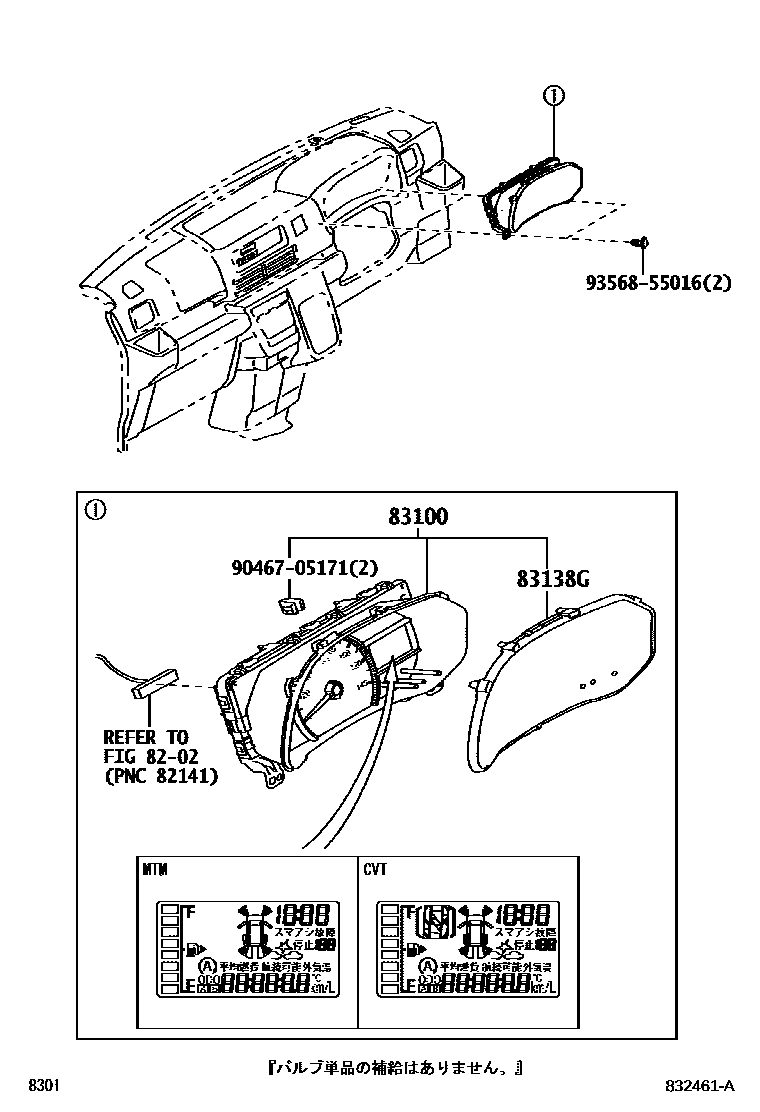

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

83100METER ASSY, COMBINATION

main83800-B5B11i202112-202205

main83800-B5B12i202206-202301

main83800-B5B14i202302

main83800-B5B15i202411

main83800-B5B21i202112

main83800-B5B22i202411

83138GGLASS, COMBINATION METER

main83852-BA760i202112

9046705171

main90467-05171

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section

METER for Toyota PIXIS VAN

This section contains 5 genuine Toyota parts for the METER system of the Toyota PIXIS VAN. Key components include: WIRING & CLAMP, METER ASSY, COMBINATION, GLASS, COMBINATION METER.
