Toyota PIXIS VAN — LANE-KEEPING ASSIST

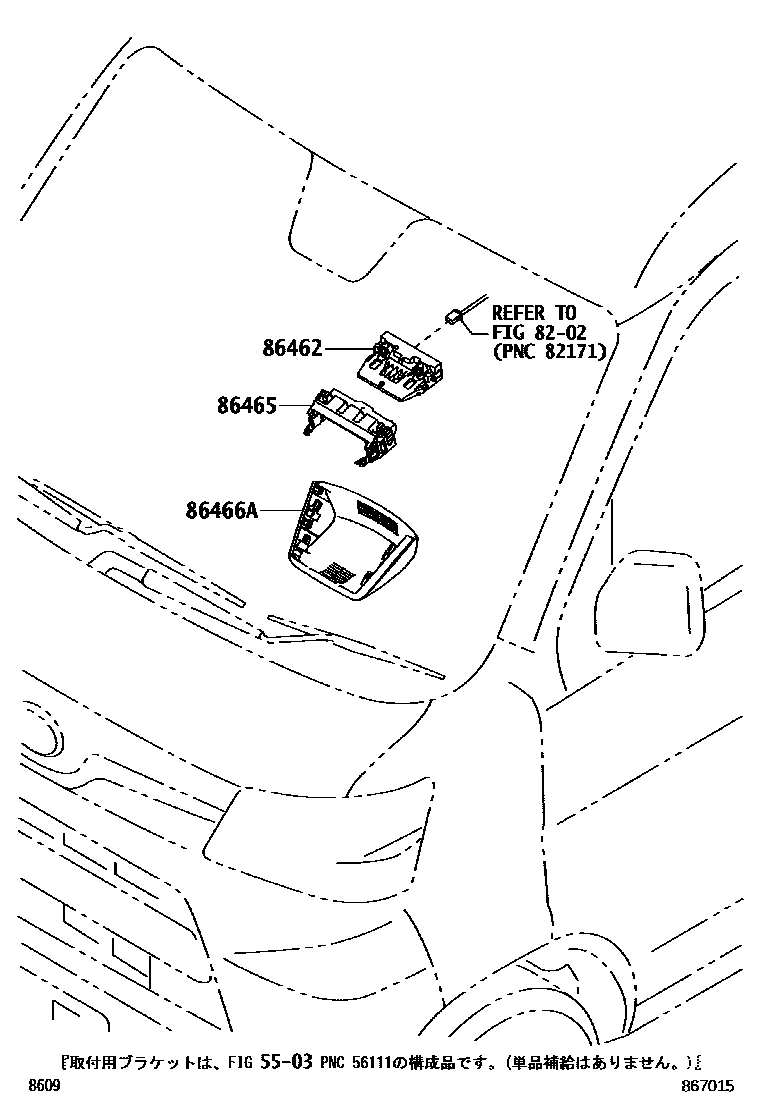

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8202WIRING & CLAMP

→ Go to FIG 82-02

86462CAMERA, OBJECT RECOGNITION

main8646C-B5011i201812

main8646C-B5030i201812

main8646C-B5010i201711-201811

mainGAITONASHIsupersedes 8646C-B5010i201711

86465BRACKET, LANE RECOGNITION

main87241-B5010i201711

mainGAITONASHIi201711

86466ACOVER, LANE RECOGNITION, NO.1

main86466-B5010-C0i201711-201801

main86466-B5011-C0i201802

BLACK,TRIM2#

mainGAITONASHIi201711-201911

5 parts on this diagram · 1 diagram in section

LANE-KEEPING ASSIST for Toyota PIXIS VAN

This section contains 5 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota PIXIS VAN. Key components include: COWL PANEL & WINDSHIELD GLASS, WIRING & CLAMP, CAMERA, OBJECT RECOGNITION, BRACKET, LANE RECOGNITION, COVER, LANE RECOGNITION, NO.1.
