Toyota PIXIS VAN — IGNITION COIL & SPARK PLUG / GLOW PLUG

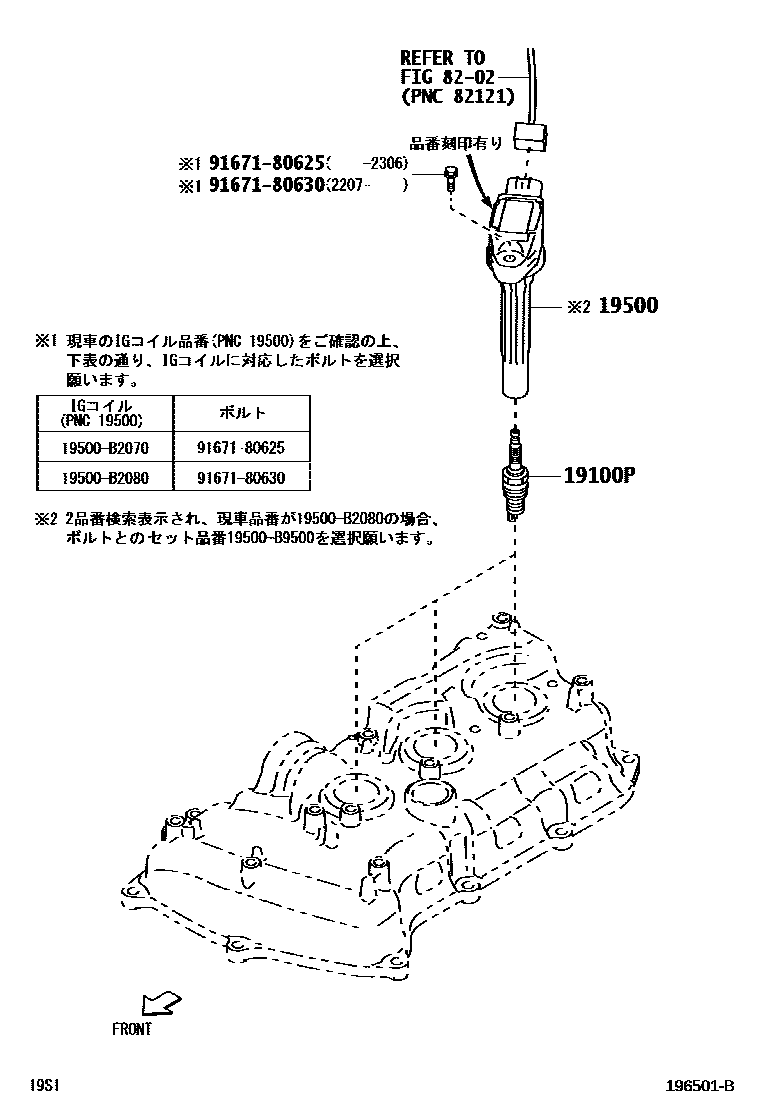

Parts diagram

19100PPLUG, SPARK

main90048-51207×3i202112

main90048-51208×3i202112

main90048-51213×3i202112

main90048-51214×3i202112

19500COIL ASSY, IGNITION

main19500-B2070×3i202112

main19500-B9500×3i202207

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180625

main91671-80625

9167180630

main91671-80630

5 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota PIXIS VAN

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota PIXIS VAN. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
