Toyota PIXIS VAN — IGNITION COIL & SPARK PLUG / GLOW PLUG

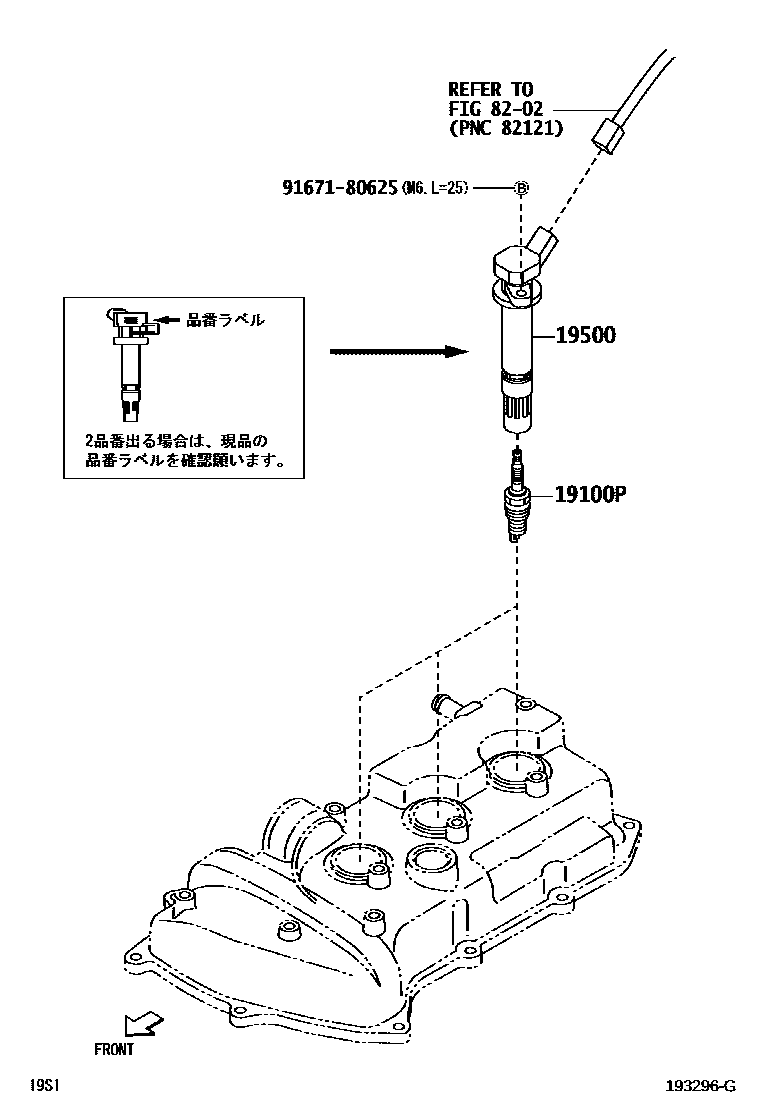

Parts diagram

19100PPLUG, SPARK

main90048-51189×3i201112-201209

main90048-51192×3i201112-201209

main90048-51198×3i201112-201209

main90048-51199×3i201112-201209

main90048-51207×3i201711

main90048-51208×3i201504-201711

main90048-51209×3i201209-201401

main90048-51210×3i201209-201401

main90048-51211×3i201209-201504

main90048-51212×3i201209-201504

main90048-51213×3i201401-201504

main90048-51214×3i201401-201504

19500COIL ASSY, IGNITION

main19500-B2050×3i201112-201512

main19500-B2051×3i201711

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180625

main91671-80625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota PIXIS VAN

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota PIXIS VAN. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
