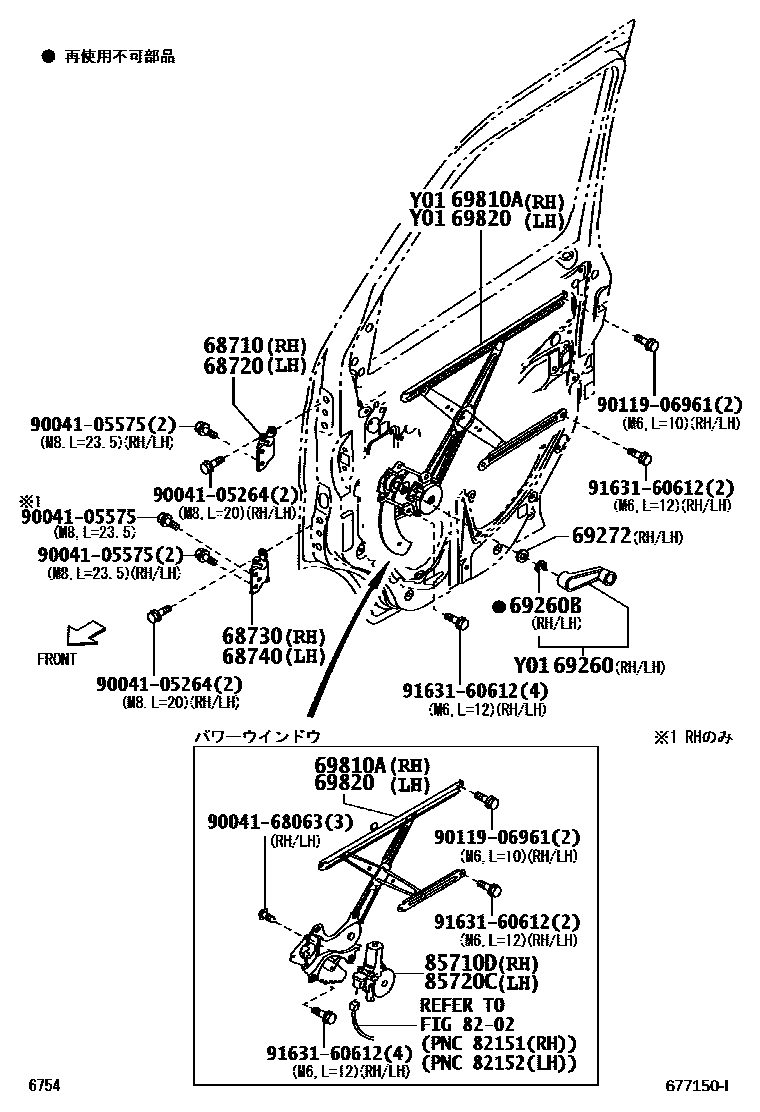

Toyota PIXIS VAN — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-B5040i201711-202112

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-B5020i201711

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-B5010i201711

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-B5010i201711

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-87103-B0×2i201112-201504

GRAY,TRIM1#

main69260-87103-C0×2i201711

BLACK,TRIM2#

main69260-B5010-B0×2i201604-201711

GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i201711

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-87601-B0×2i201112-201504

GRAY,TRIM1#

main69268-87601-C0×2i201711

BLACK,TRIM2#

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-B5010i201112-201504

main69810-B5060i201112-201504

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-B5010i201112-201504

main69820-B5040i201112-201504

8202WIRING & CLAMP

→ Go to FIG 82-02

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B2021i201711

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2021i201711

9004105264

main90041-05264

9004105575

main90041-05575

9004168063

main90041-68063

9011906961

main90119-06961

9163160612

main91631-60612

17 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota PIXIS VAN

This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota PIXIS VAN. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
