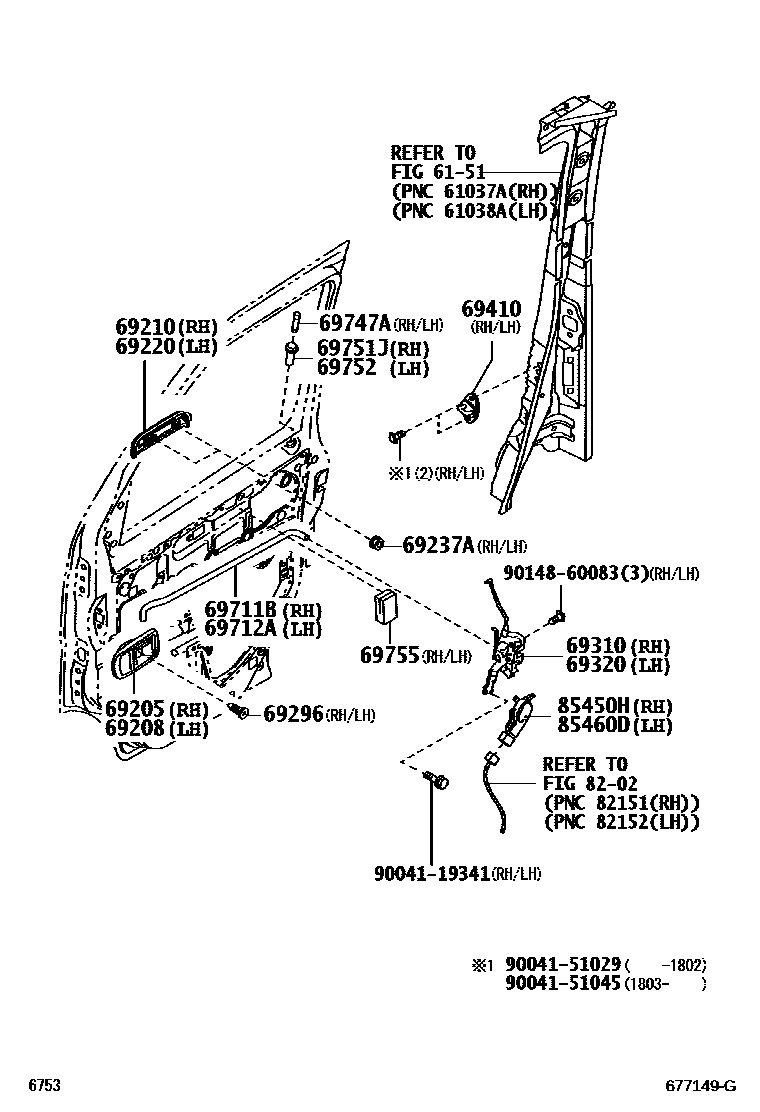

Toyota PIXIS VAN — FRONT DOOR LOCK & HANDLE
6151SIDE MEMBER
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69237ANUT, FRONT DOOR HANDLE
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM2#
69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM2#
DK.GRAY,TRIM1#
BLACK,TRIM1#
DK.GRAY,TRIM1#
69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
BLACK,TRIM2#
DK.GRAY,TRIM1#
BLACK,TRIM1#
DK.GRAY,TRIM1#
69755SILENCER, FRONT DOOR LOCK LINK
8202WIRING & CLAMP
85450HMOTOR ASSY, DOOR CONTROL, FRONT RH
85460DMOTOR ASSY, DOOR CONTROL, FRONT LH
9004119341
main90041-19341
9004151029
main90041-51029
9004151045
main90041-51045
9014860083
main90148-60083
23 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PIXIS VAN
This section contains 23 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PIXIS VAN. Key components include: SIDE MEMBER, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
