Toyota PIXIS VAN — FRAME

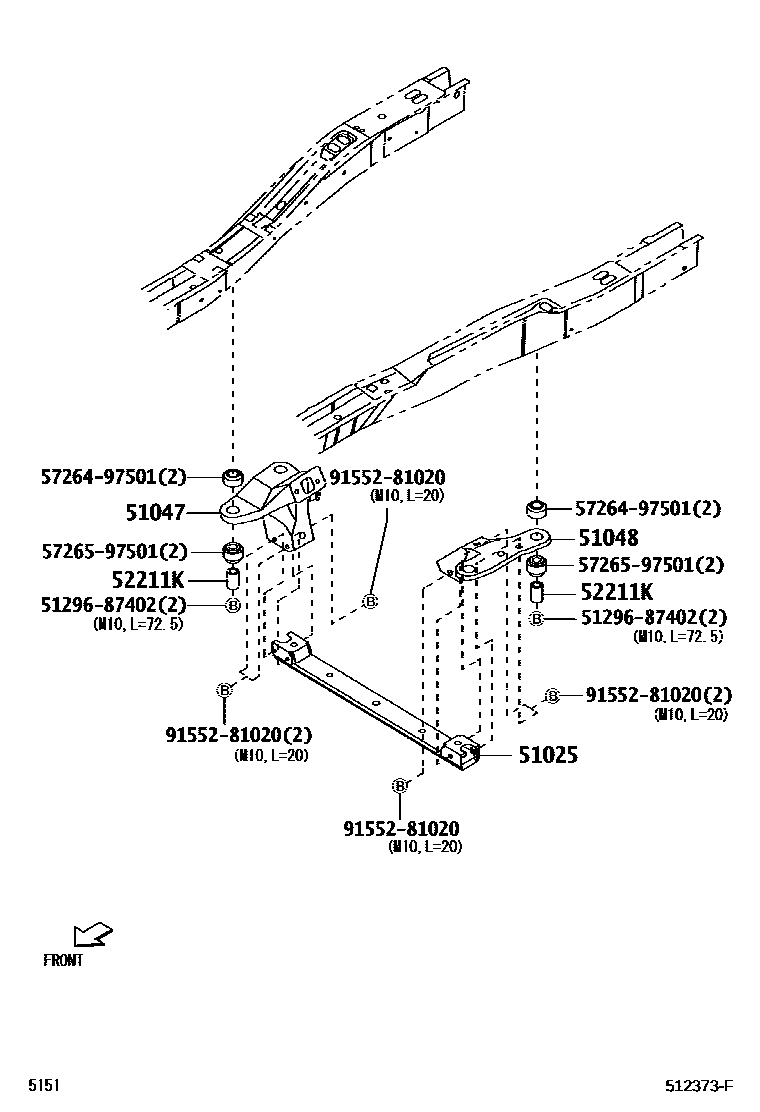

Parts diagram

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51204-B5020i201112-201210

main51204-B5021i201711

51047BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH

main51047-B5010i201112-201210

main51047-B5011i201211-201504

main51047-B5012i201504-201711

51048BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH

main51048-B5010i201112-201210

main51048-B5011i201211-201504

52211KSPACER, CAB FRONT MOUNTING

main12341-87501×4i201711

5129687402BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-87402

5726497501

main57264-97501

5726597501

main57265-97501

9155281020

main91552-81020

8 parts on this diagram · 1 diagram in section

FRAME for Toyota PIXIS VAN

This section contains 8 genuine Toyota parts for the FRAME system of the Toyota PIXIS VAN. Key components include: MEMBER SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH, BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH, SPACER, CAB FRONT MOUNTING, BOLT, FRONT SUSPENSION MEMBER MOUNTING.
