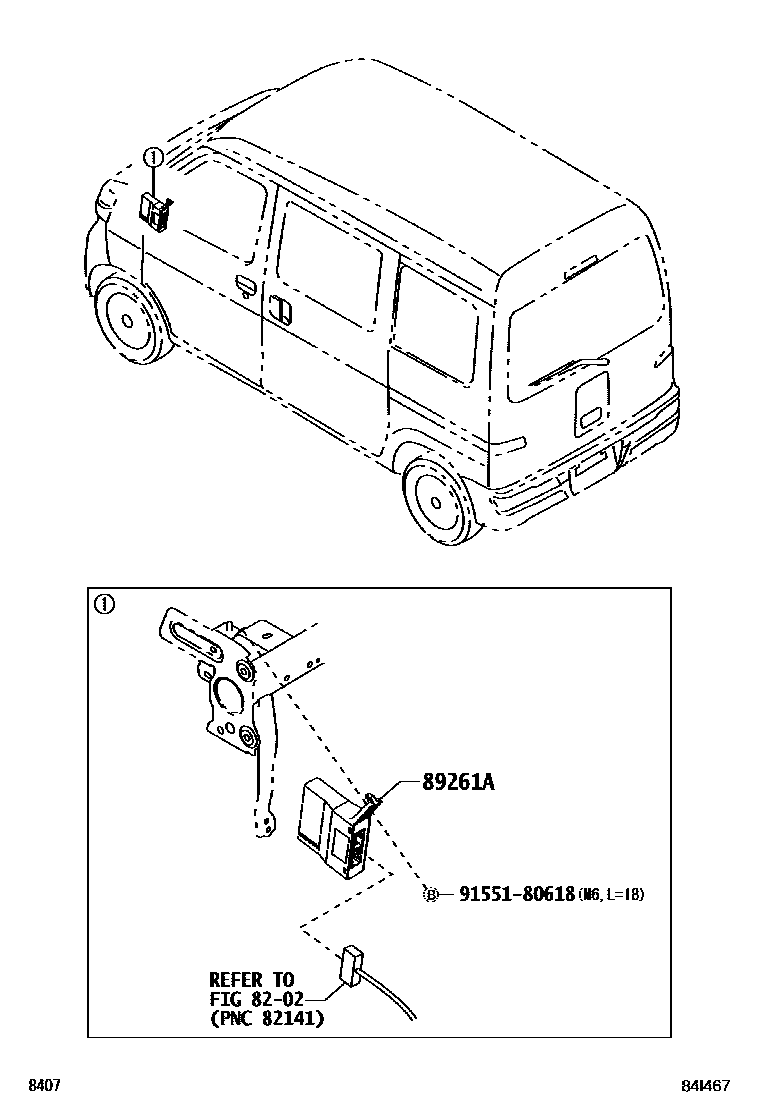

Toyota PIXIS VAN — ECO-RUN SYSTEM

8202WIRING & CLAMP

→ Go to FIG 82-02

89261ACOMPUTER, ENGINE STOP AND START

main89261-B5010i201711

main89261-B5020i201711

main89261-B5030i202009

9155180618

main91551-80618

3 parts on this diagram · 1 diagram in section

ECO-RUN SYSTEM for Toyota PIXIS VAN

This section contains 3 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota PIXIS VAN. Key components include: WIRING & CLAMP, COMPUTER, ENGINE STOP AND START.
