Toyota PIXIS VAN — CLUTCH & RELEASE FORK

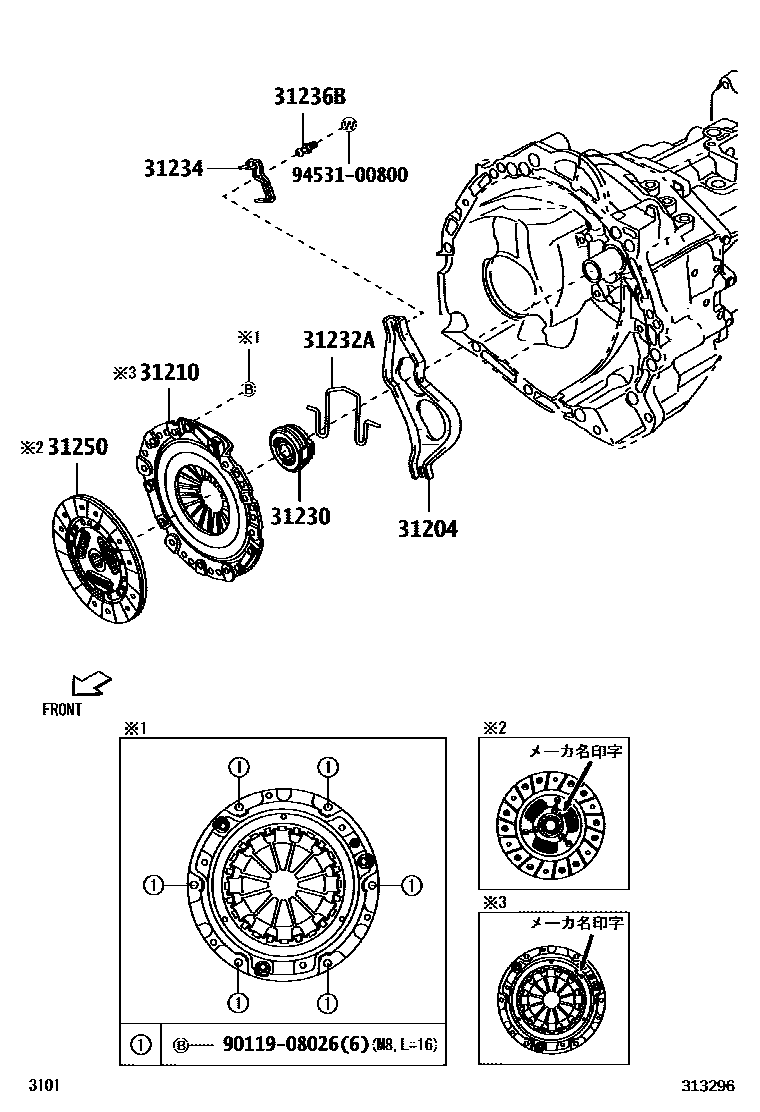

Parts diagram

31204FORK SUB-ASSY, CLUTCH RELEASE

main31233-B5020i201112-201504

31210COVER ASSY, CLUTCH

main31210-B5010i201112-201410

main31210-B5020i201112-201301

main31210-B5021i201302-201504

main31210-B5030i201112-201711

31230BEARING ASSY, CLUTCH RELEASE

main31230-B4010i201711

31232ACLIP, RELEASE BEARING HUB

main31232-87505i201112-201504

31234SPRING, RELEASE FORK ANTI-RATTLE

main31234-87402i201711

31236BSUPPORT, RELEASE FORK

main31236-87501i201711

31250DISC ASSY, CLUTCH

main31250-B5020i201112-201305

main31250-B5021i201306-201711

main31250-B5030i201112-201410

main31250-B5040i201112-201504

9011908026

main90119-08026

9453100800

main94531-00800

9 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota PIXIS VAN

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota PIXIS VAN. Key components include: FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB, SPRING, RELEASE FORK ANTI-RATTLE.
