Toyota PIXIS VAN — BATTERY CARRIER

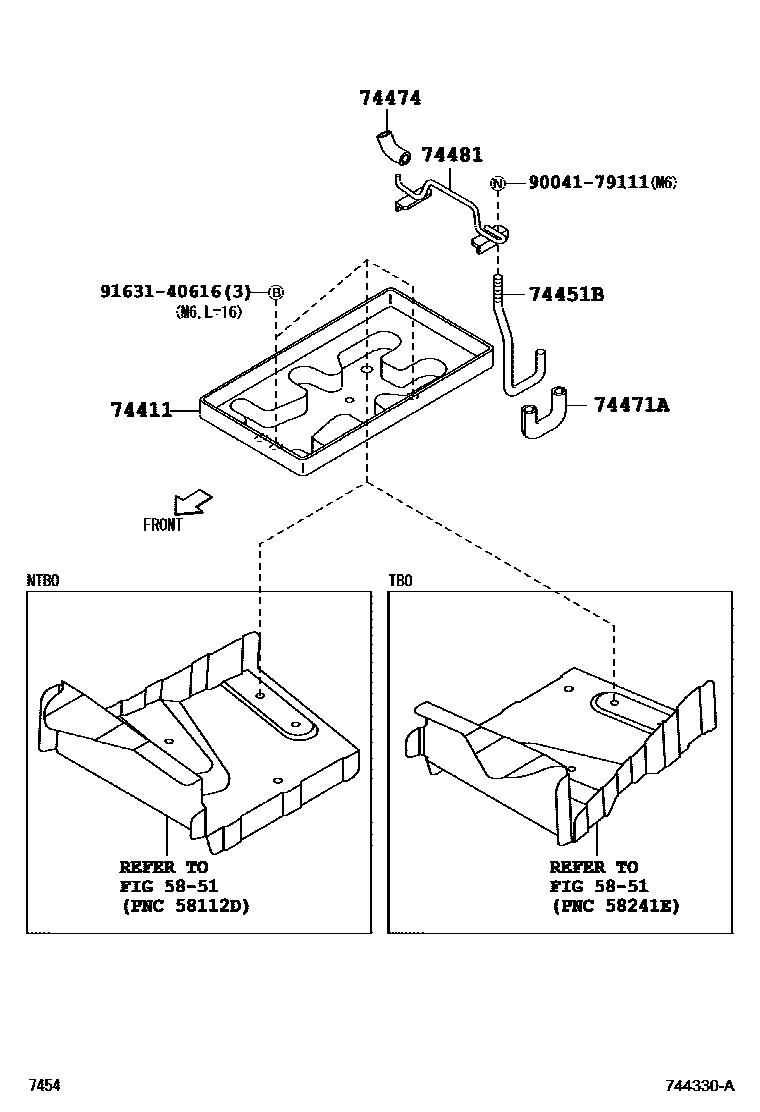

Parts diagram

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

74411CARRIER, BATTERY

main74411-B5010i201112-201711

main74411-B5030i201711

74451BBOLT, BATTERY CLAMP

main74451-B5010i201112-201504

main74451-B5050i201711

main74451-B5060i201711

74471APAD, BATTERY CLAMP

main74489-97501i201112-201504

74474PAD, BATTERY

main74423-97501i201112-201504

74481CLAMP, BATTERY HOLD DOWN

main74404-97501i201112-201504

main74404-B5020i201711

main74404-B5040i201711

9004179111

main90041-79111

9163140616

main91631-40616

8 parts on this diagram · 3 diagrams in section

BATTERY CARRIER for Toyota PIXIS VAN

This section contains 9 genuine Toyota parts for the BATTERY CARRIER system of the Toyota PIXIS VAN. Key components include: FRONT FLOOR PANEL & FRONT FLOOR MEMBER, CARRIER, BATTERY, BOLT, BATTERY CLAMP, PAD, BATTERY CLAMP, PAD, BATTERY.
