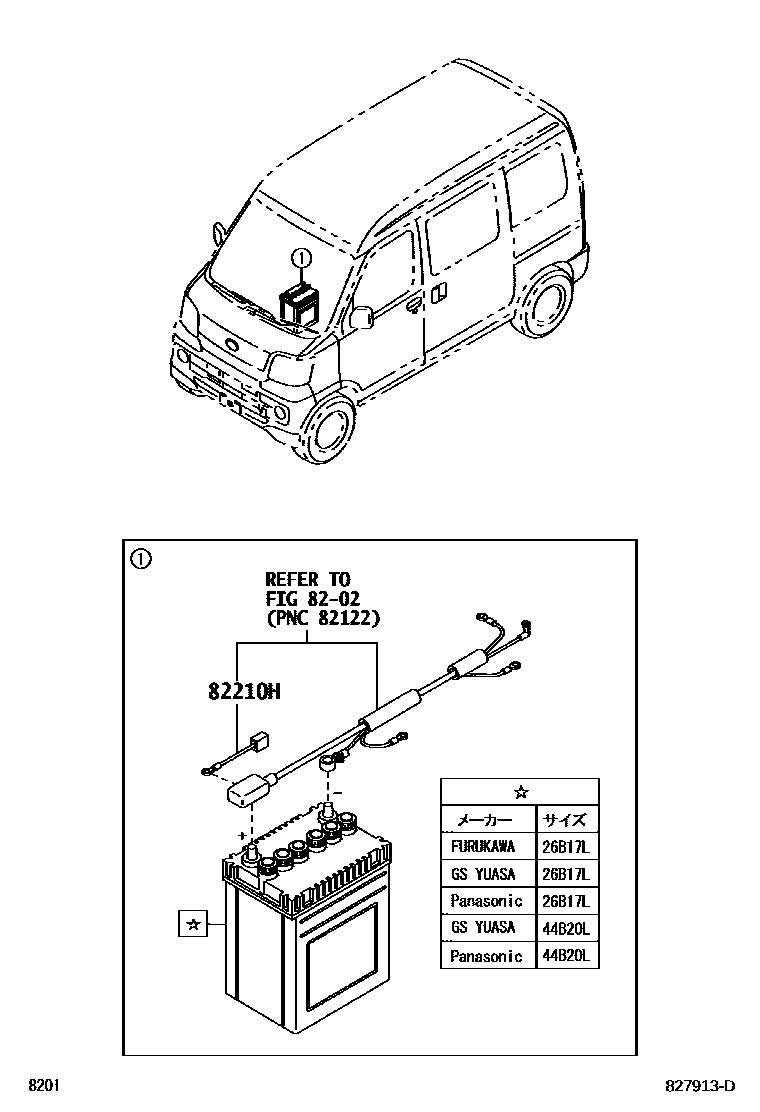

Toyota PIXIS VAN — BATTERY & BATTERY CABLE

8202WIRING & CLAMP

→ Go to FIG 82-02

82210HFUSIBLE LINK

main82627-B5010i201112-201504

main82627-B5030i201112-201504

2 parts on this diagram · 4 diagrams in section

BATTERY & BATTERY CABLE for Toyota PIXIS VAN

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota PIXIS VAN. Key components include: HOLDER, BATTERY CURRENT SENSOR, COVER, BATTERY, BATTERY CARRIER, WIRING & CLAMP, FUSIBLE LINK.
