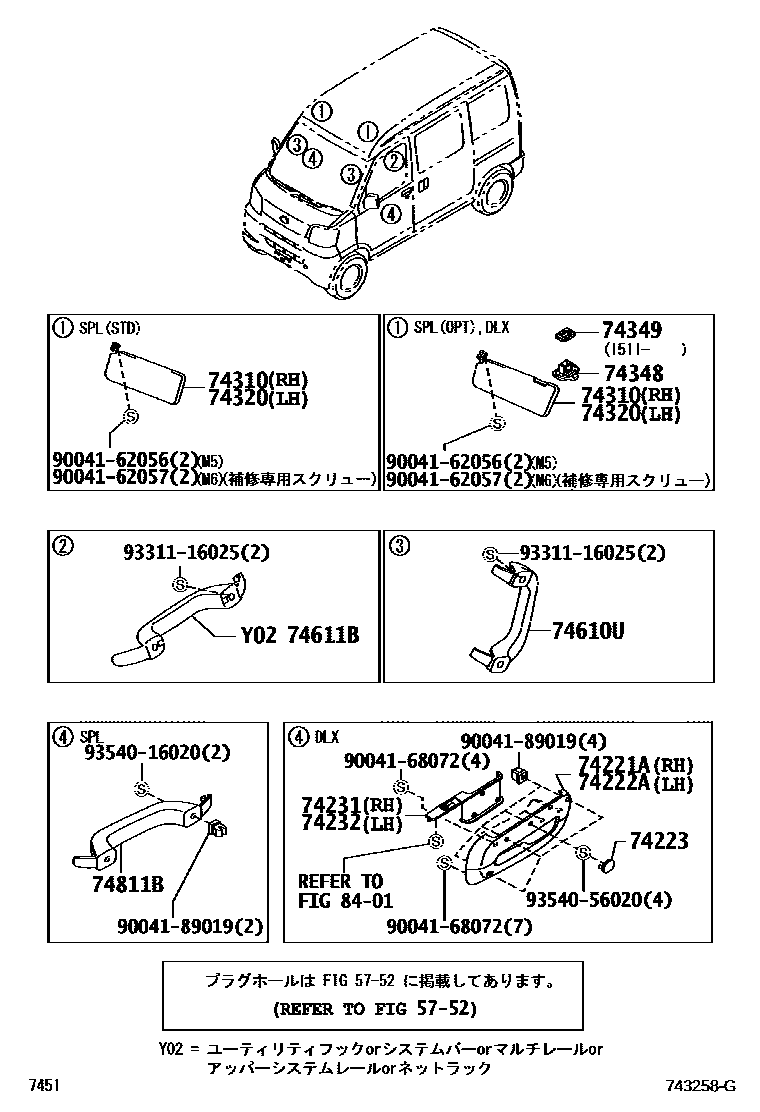

Toyota PIXIS VAN — ARMREST & VISOR
5752HOLE PLUG
74221ACOVER, FRONT DOOR ARMREST, RH
GRAY,TRIM1#
BLACK,TRIM2#
74222ACOVER, FRONT DOOR ARMREST, LH
GRAY,TRIM1#
BLACK,TRIM2#
74223CAP, DOOR ARMREST, RH
GRAY,TRIM1#
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
GRAY,TRIM1#
BLACK,TRIM2#
74310VISOR ASSY, RH
main74310-B5045-B1supersedes 74310-B5104-B1iS321,331..(CR,DLX)..PS1; S321,331..SPL..PS1201112-201504
LT.GRAY,TRIM2#
main74310-B5200-B1supersedes 74310-B5210-B1iS321,331..5F..SPL; S321,331..CR,DLX;S321,331..4FC..SPL201711-201806
main74310-B5210-B1supersedes 74310-B5190-B1iS321,331..5F..SPL; S321,331..CR,DLX;S321,331..4FC..SPL201711-201806
74320VISOR ASSY, LH
main74320-B5050-B1supersedes 74320-B5040-B1iS321,331..(CR,DLX)..PS2; S321,331..SPL..PS2201112-201511
main74320-B5160-B1supersedes 74320-B5150-B1iS321,331..CR,DLX;S321,331..4FC..SPL..PS3;S321,331..SPL..(PS4,PS5,PS6)201711
LT.GRAY,TRIM2#
74348HOLDER, VISOR
LT.GRAY,TRIM2#
74349SPACER, VISOR HOLDER
74610UGRIP ASSY, ASSIST
74611BGRIP, ASSIST
LT.GRAY,TRIM1#
74811BHANDLE, DOOR PULL
GRAY,TRIM1#
BLACK,TRIM2#
8401SWITCH & RELAY & COMPUTER
9004162056
main90041-62056
9004162057
main90041-62057
9004168072
main90041-68072
9004189019
main90041-89019
9331116025
main93311-16025
9354016020
main93540-16020
9354056020
main93540-56020
21 parts on this diagram · 4 diagrams in section
ARMREST & VISOR for Toyota PIXIS VAN
This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PIXIS VAN. Key components include: HOLE PLUG, COVER, FRONT DOOR ARMREST, RH, COVER, FRONT DOOR ARMREST, LH, CAP, DOOR ARMREST, RH, PANEL, FRONT ARMREST BASE, UPPER RH.
