Toyota PIXIS VAN — ACCELERATOR LINK

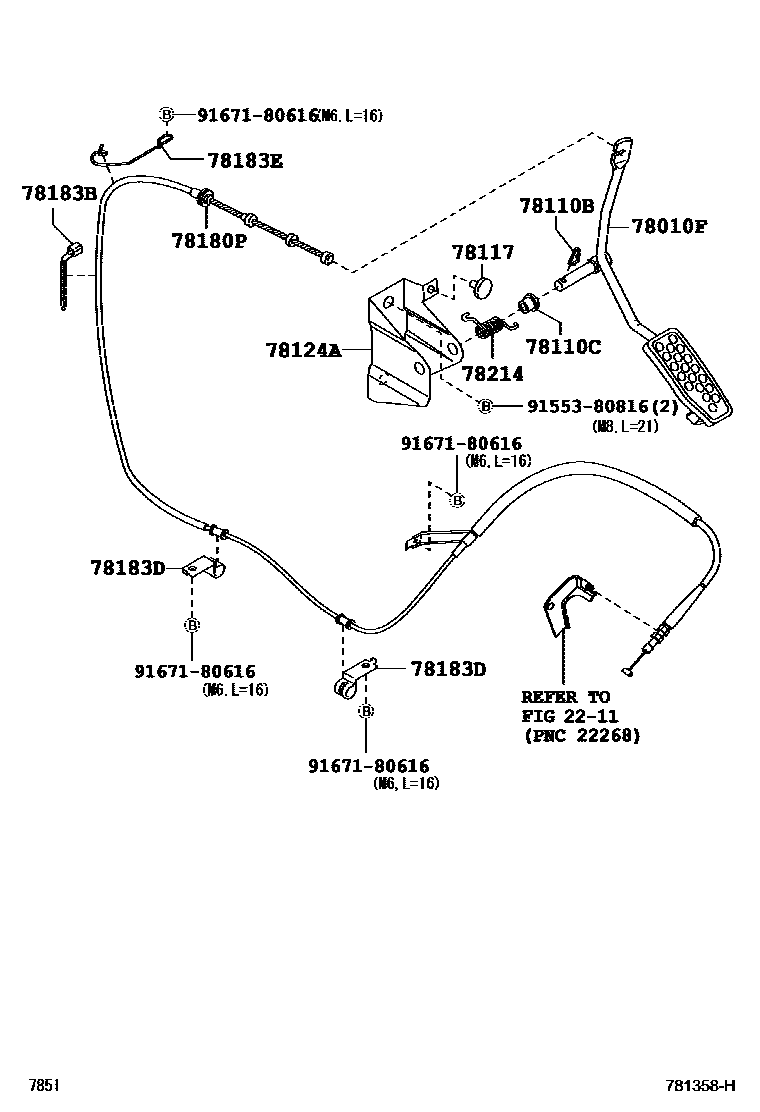

Parts diagram
2211FUEL INJECTION SYSTEM
→ Go to FIG 22-11
78010FPEDAL ASSY, ACCELERATOR
main78101-B5020i201112-201504
78110BCLIP, ACCELERATOR BELLCRANK
main90044-68207i201112-201504
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
main90043-86112i201112-201504
78117CUSHION (FOR ACCELERATOR ROD)
main90045-40158i201112-201504
78124ABRACKET, ACCELERATOR PEDAL ROD
main78124-B5010i201112-201504
78180PCABLE ASSY, ACCELERATOR CONTROL
main78180-B5010i201112-201504
78183BCLAMP, ACCELERATOR CONTROL CABLE
main90044-64137i201112-201504
78183DCLAMP, ACCELERATOR CONTROL CABLE
main90044-61822×2i201112-201308
main90044-61851×2i201309-201504
78183ECLAMP, ACCELERATOR CONTROL CABLE
main78183-B5010i201112-201504
78214SPRING, ACCELERATOR LINK ROD RETURN
main78214-B5010i201112-201504
main78214-B5020i201112-201504
9155380816
main91553-80816
9167180616
main91671-80616

13 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota PIXIS VAN
