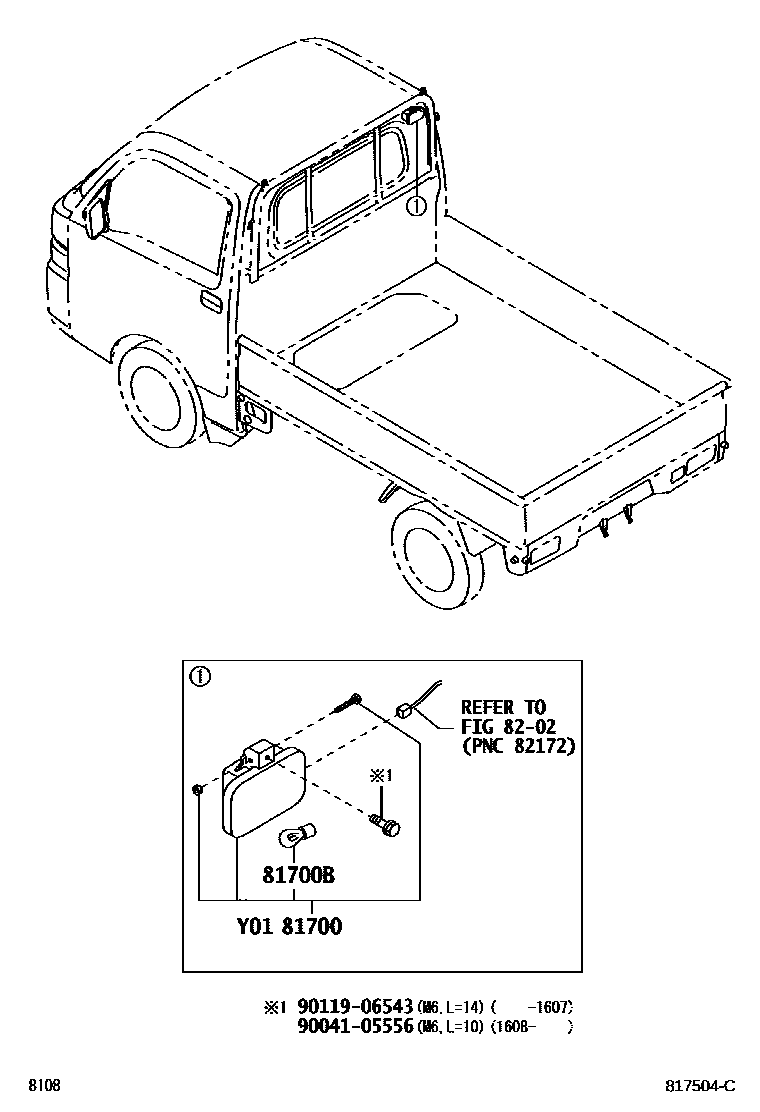

Toyota PIXIS TRUCK — WORK LAMP

81700LAMP ASSY, WORK

main81780-97502i201409-201610

81700BBULB, WORK LAMP

main99132-11210i201409-201610

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105556

main90041-05556

9011906543

main90119-06543

5 parts on this diagram · 1 diagram in section

WORK LAMP for Toyota PIXIS TRUCK

This section contains 5 genuine Toyota parts for the WORK LAMP system of the Toyota PIXIS TRUCK. Key components include: LAMP ASSY, WORK, BULB, WORK LAMP, WIRING & CLAMP.
