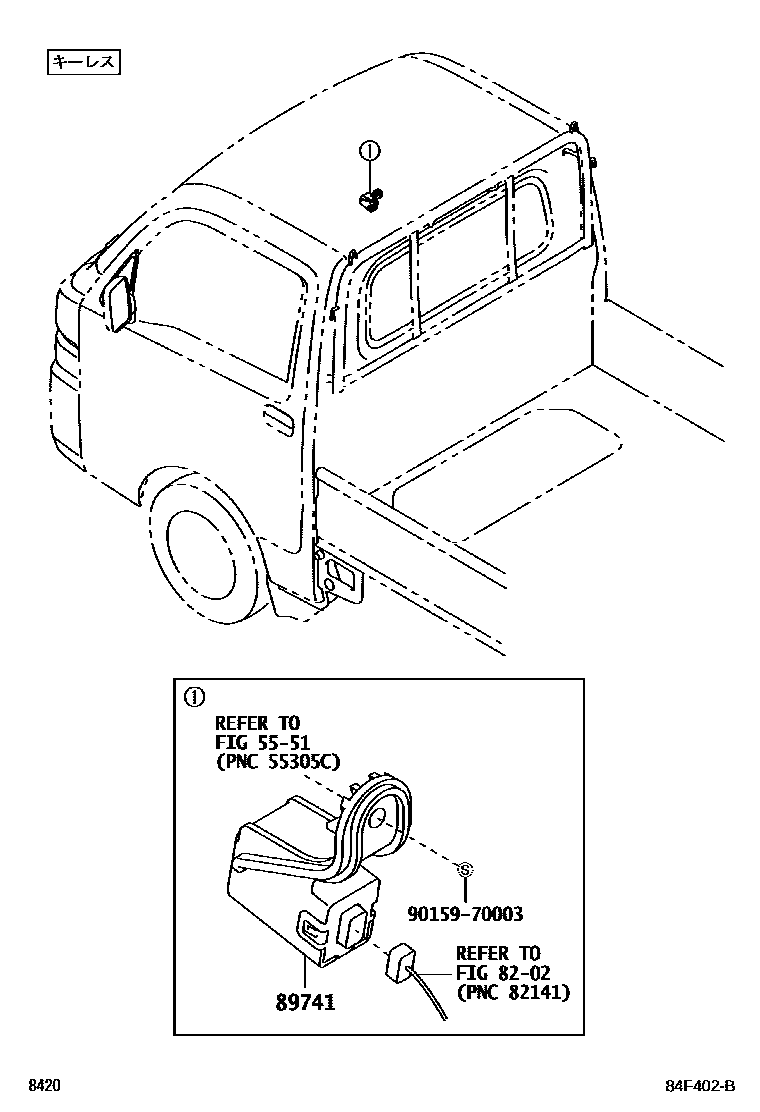

Toyota PIXIS TRUCK — WIRELESS DOOR LOCK

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8202WIRING & CLAMP

→ Go to FIG 82-02

89741RECEIVER, DOOR CONTROL

main89741-B5010i201409-201610

9015970003

main90159-70003

4 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota PIXIS TRUCK

This section contains 4 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota PIXIS TRUCK. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, WIRING & CLAMP, RECEIVER, DOOR CONTROL.
