Toyota PIXIS TRUCK — ROOF PANEL & BACK PANEL

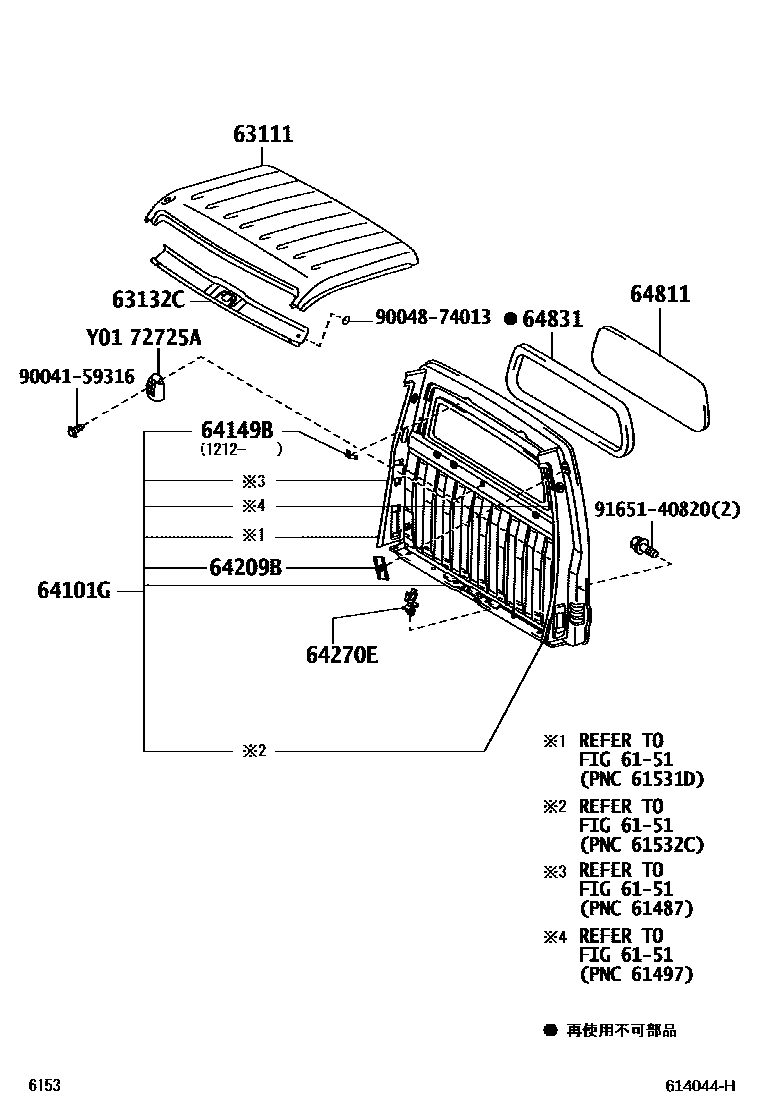

Parts diagram

6151SIDE MEMBER

→ Go to FIG 61-51

63111PANEL, ROOF

main63111-97522i201112

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-B5030i201112

64101GPANEL SUB-ASSY, BACK

main64101-B5160i201112-201212

main64101-B5240i201212

64149BRETAINER, BACK PANEL HEADREST

main64149-B5010×2i201212

64209BBRACKET SUB-ASSY, BACK PANEL TRIM

main64209-B5011×2i201112

64270ECLIP

main90044-68323i201112-201407

64811GLASS, BACK WINDOW

main64811-97501i201112-201407

main64811-B5020i201112-201407

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-97501i201112

72725AHOOK, FRONT SEATBACK

main72725-87201-B0i201112

GRAY,TRIM1#

9004159316

main90041-59316

9004874013

main90048-74013

9165140820

main91651-40820

13 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota PIXIS TRUCK

This section contains 13 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota PIXIS TRUCK. Key components include: SIDE MEMBER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, PANEL SUB-ASSY, BACK, RETAINER, BACK PANEL HEADREST.
