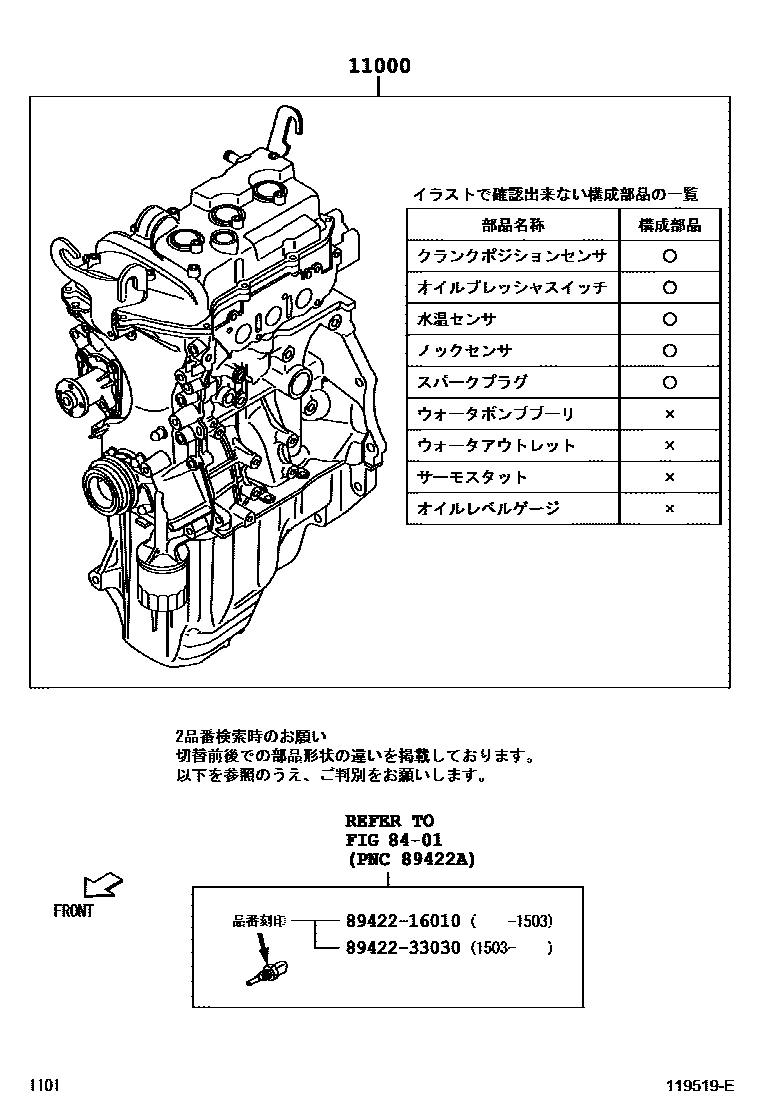

Toyota PIXIS TRUCK — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-B5081i201409-201503

main19000-B5082i201503-201602

main19000-B5083i201602-201610

main19000-B5430i202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota PIXIS TRUCK

This section contains 2 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota PIXIS TRUCK. Key components include: ENGINE ASSY, PARTIAL, SWITCH & RELAY & COMPUTER.
