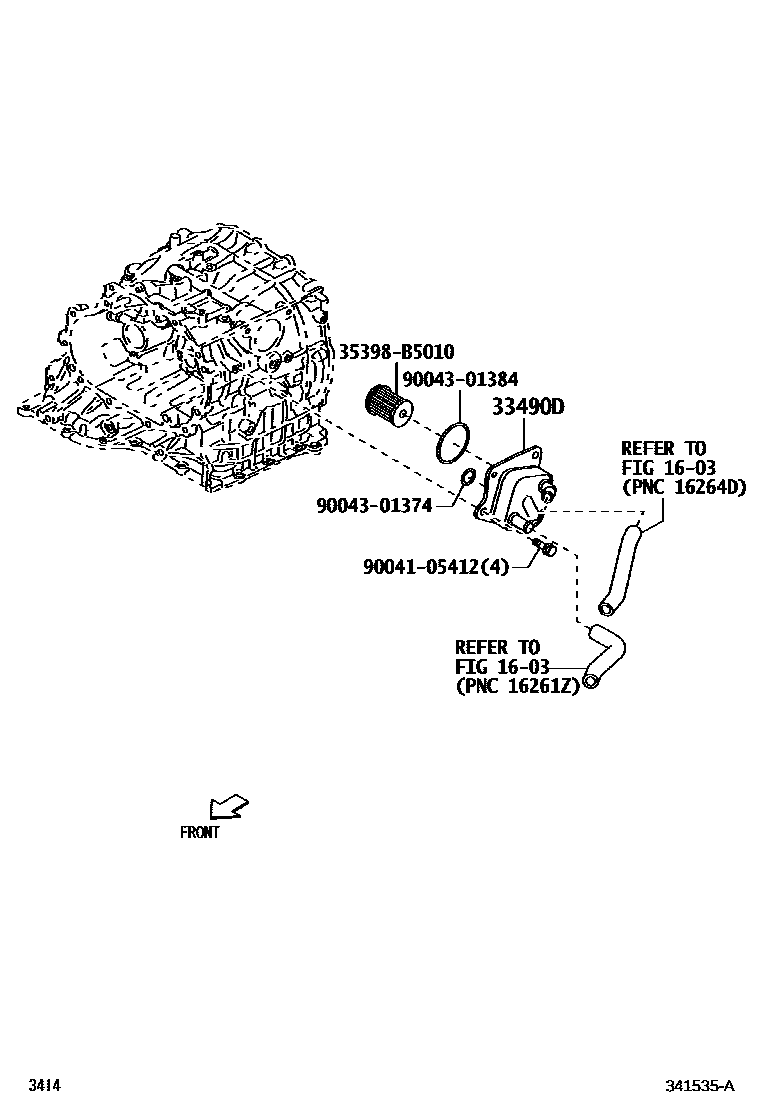

Toyota PIXIS TRUCK — OIL COOLER & TUBE(CVT)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-B5030i202112

35398B5010STRAINER, LUBRICATION OIL

main35398-B5010

9004105412

main90041-05412

9004301374

main90043-01374

9004301384

main90043-01384

6 parts on this diagram · 1 diagram in section

OIL COOLER & TUBE(CVT) for Toyota PIXIS TRUCK

This section contains 6 genuine Toyota parts for the OIL COOLER & TUBE(CVT) system of the Toyota PIXIS TRUCK. Key components include: RADIATOR & WATER OUTLET, COOLER ASSY, TRANSMISSION OIL, STRAINER, LUBRICATION OIL.
