Toyota PIXIS TRUCK — LANE-KEEPING ASSIST

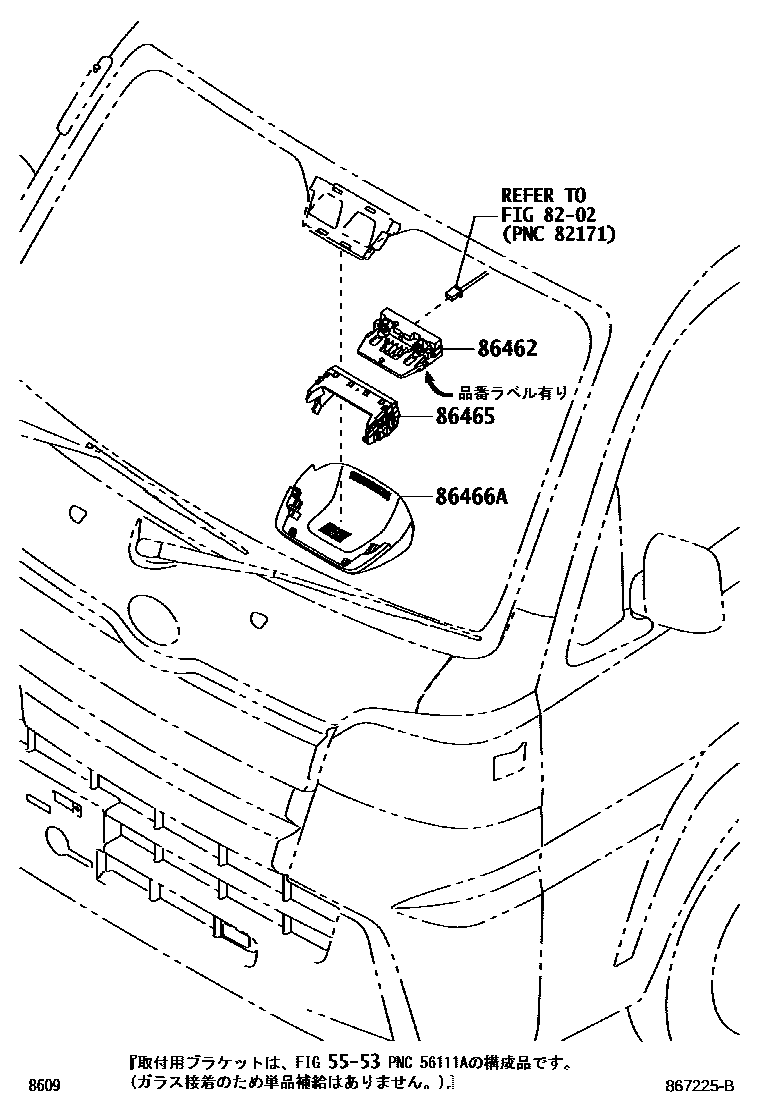

Parts diagram

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

8202WIRING & CLAMP

→ Go to FIG 82-02

86462CAMERA, OBJECT RECOGNITION

main8646C-B5020i201806-202009

main8646C-B5060i202009

main00000-00000i201806-202112

mainGAITONASHIi201806

86465BRACKET, LANE RECOGNITION

main87241-B5020i201806

main00000-00000i201806-202112

mainGAITONASHIi201806

86466ACOVER, LANE RECOGNITION, NO.1

main86466-B5020-C0i201806

BLACK,TRIM2#

main00000-00000i201806-202112

mainGAITONASHIi201806

5 parts on this diagram · 1 diagram in section

LANE-KEEPING ASSIST for Toyota PIXIS TRUCK

This section contains 5 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota PIXIS TRUCK. Key components include: COWL PANEL & WINDSHIELD GLASS, WIRING & CLAMP, CAMERA, OBJECT RECOGNITION, BRACKET, LANE RECOGNITION, COVER, LANE RECOGNITION, NO.1.
