Toyota PIXIS TRUCK — HOOD & FRONT FENDER

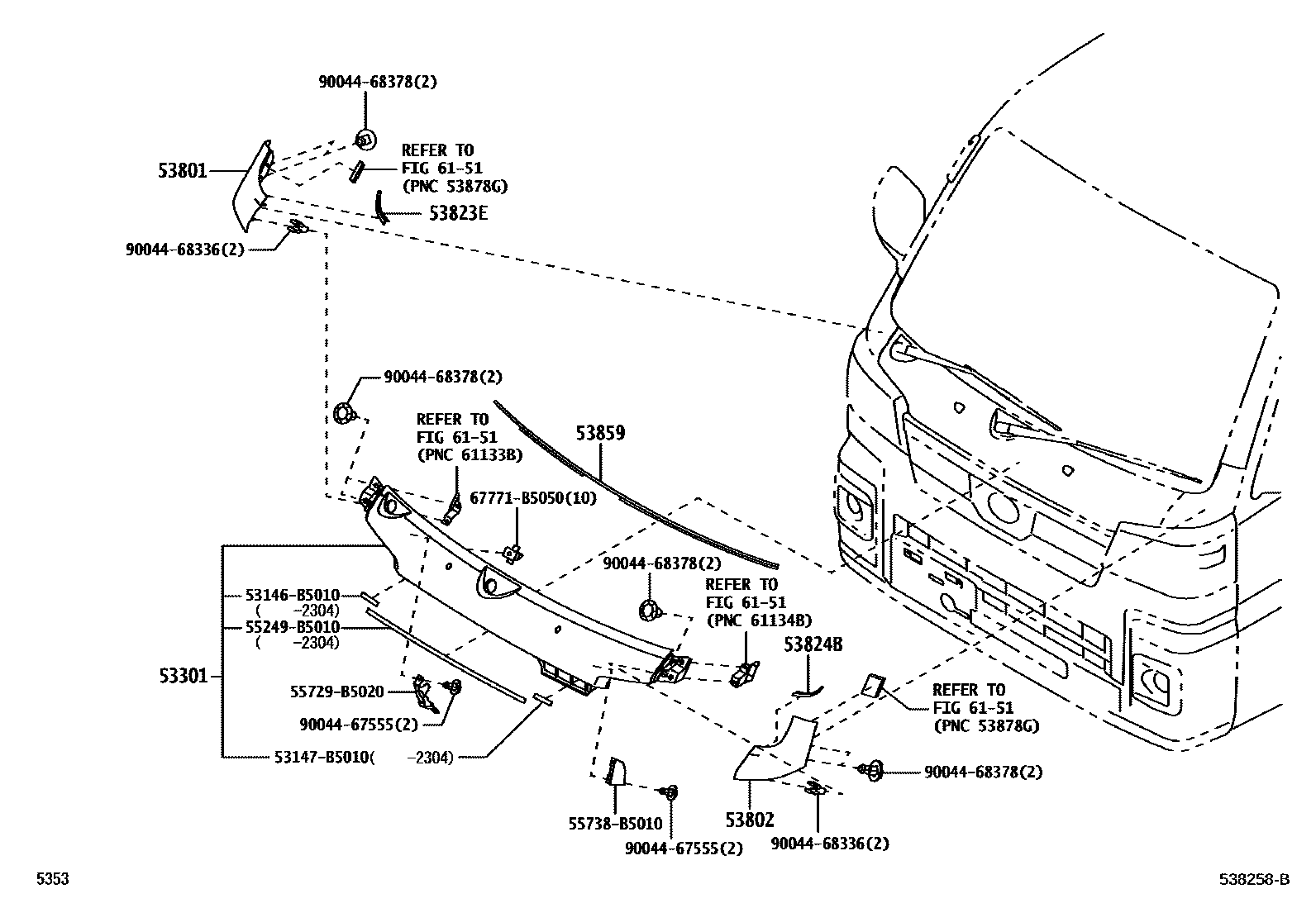

Parts diagram

53301HOOD SUB-ASSY

main53101-B5110i202112-202304

main53101-B5111i202305

53801FENDER SUB-ASSY, FRONT RH

main53445-B5031i202112

53802FENDER SUB-ASSY, FRONT LH

main53446-B5031i202112

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53821-B5040i202112

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53822-B5010i202112

53859PROTECTOR, FRONT FENDER

main53829-B5011i202112

6151SIDE MEMBER

→ Go to FIG 61-51

53146B5010BRACKET, RADIATOR GRILLE MOUNTING, LH

main53146-B5010

53147B5010WEATHERSTRIP, HEADLAMP ORNAMENT, NO.1

main53147-B5010

55249B5010HOLDER, EXHAUST BRAKE

main55249-B5010

55729B5020PAD, FRONT SIDE PANEL

main55729-B5020

55738B5010GARNISH, COWL VENTILATOR, LH

main55738-B5010

67771B5050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-B5050

9004467555

main90044-67555

9004468336

main90044-68336

9004468378

main90044-68378

16 parts on this diagram · 1 diagram in section

HOOD & FRONT FENDER for Toyota PIXIS TRUCK

This section contains 16 genuine Toyota parts for the HOOD & FRONT FENDER system of the Toyota PIXIS TRUCK. Key components include: HOOD SUB-ASSY, FENDER SUB-ASSY, FRONT RH, FENDER SUB-ASSY, FRONT LH, PROTECTOR, FRONT SIDE PANEL, NO.2 RH, PROTECTOR, FRONT SIDE PANEL, NO.2 LH.
