Toyota PIXIS TRUCK — HOOD & FRONT FENDER

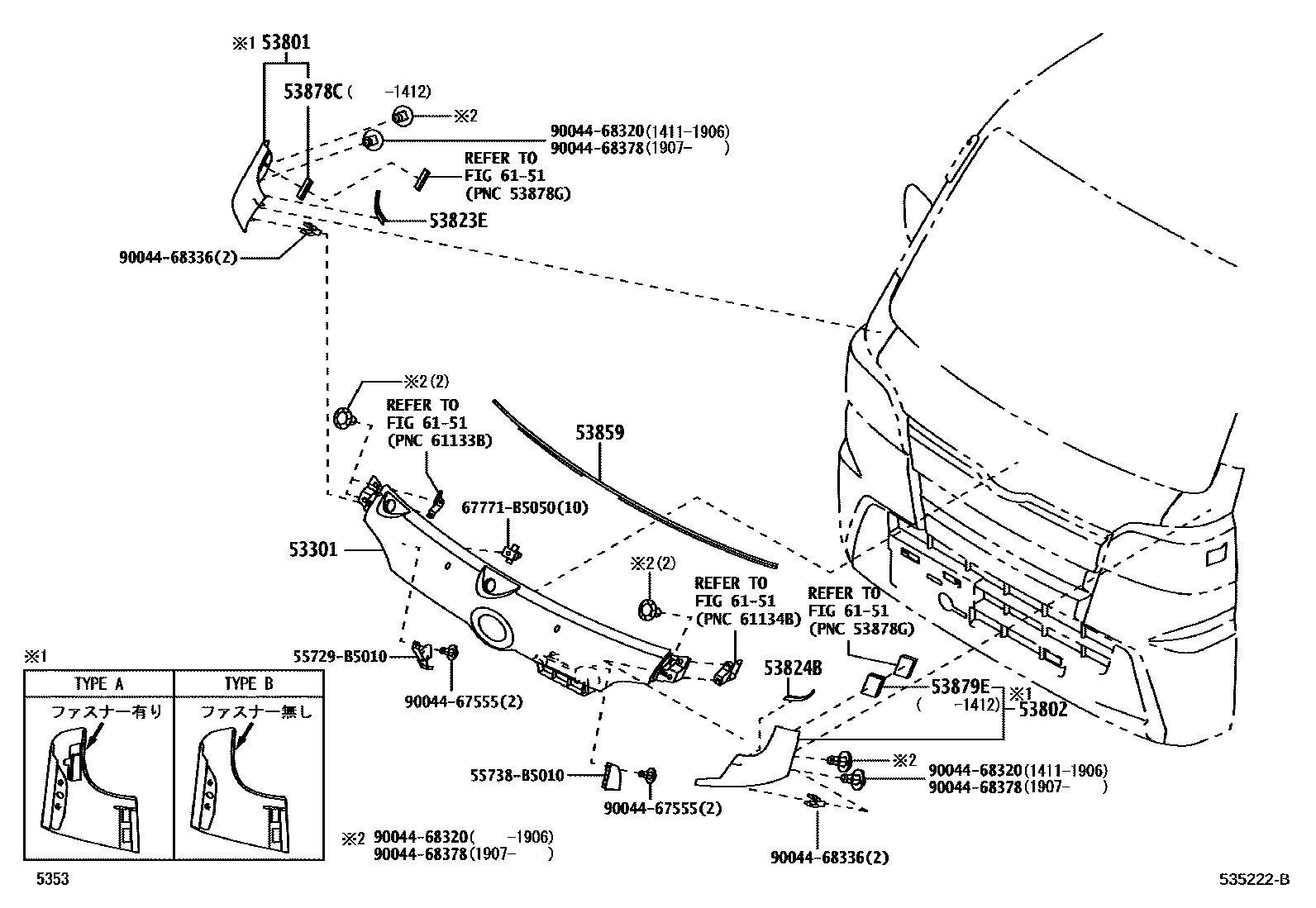

Parts diagram

53301HOOD SUB-ASSY

main53101-B5040i201409-201610

53801FENDER SUB-ASSY, FRONT RH

main53445-B5030i201409-201412

main53445-B5031i201412-201610

53802FENDER SUB-ASSY, FRONT LH

main53446-B5030i201409-201412

main53446-B5031i201412-201610

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53821-B5040i201409-201610

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53822-B5010i201409-201610

53859PROTECTOR, FRONT FENDER

main53829-B5010i201409-201505

main53829-B5011i201506-201610

53878CSPACER, FRONT FENDER

main53878-B5020i201409-201412

53879ESPACER, FRONT FENDER, LH

main53878-B5020i201409-201412

6151SIDE MEMBER

→ Go to FIG 61-51

55729B5010PAD, FRONT SIDE PANEL

main55729-B5010

55738B5010GARNISH, COWL VENTILATOR, LH

main55738-B5010

67771B5050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-B5050

9004467555

main90044-67555

9004468320

main90044-68320

9004468336

main90044-68336

9004468378

main90044-68378

16 parts on this diagram · 1 diagram in section

HOOD & FRONT FENDER for Toyota PIXIS TRUCK

This section contains 16 genuine Toyota parts for the HOOD & FRONT FENDER system of the Toyota PIXIS TRUCK. Key components include: HOOD SUB-ASSY, FENDER SUB-ASSY, FRONT RH, FENDER SUB-ASSY, FRONT LH, PROTECTOR, FRONT SIDE PANEL, NO.2 RH, PROTECTOR, FRONT SIDE PANEL, NO.2 LH.
