Toyota PIXIS TRUCK — FRONT BUMPER & BUMPER STAY

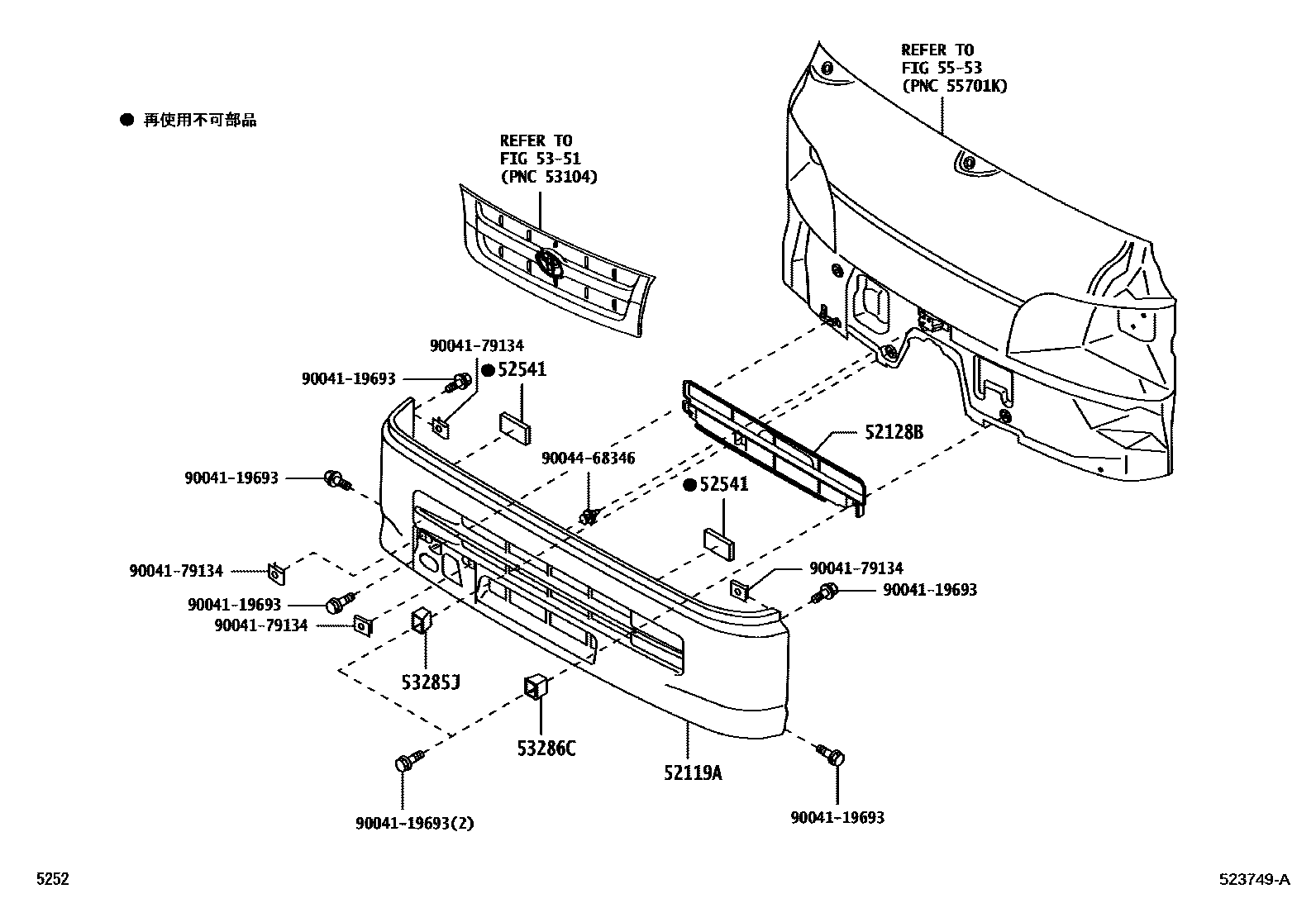

Parts diagram

52119ACOVER, FRONT BUMPER

main52119-B5031i201112-201407

main52119-B5040-A2i201112-201407

main52119-B5040-B2i201112-201407

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-B5030i201112

52541PROTECTOR, FRONT BUMPER

main52541-B5010×2i201112

53285JCOVER, FRONT BUMPER ARM HOLE, RH

main53285-B5010i201112

53286CCOVER, FRONT BUMPER ARM HOLE, LH

main53286-B5010i201112

5351RADIATOR GRILLE

→ Go to FIG 53-51

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

9004119693

main90041-19693

9004179134

main90041-79134

9004468346

main90044-68346

10 parts on this diagram · 1 diagram in section

FRONT BUMPER & BUMPER STAY for Toyota PIXIS TRUCK

This section contains 10 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota PIXIS TRUCK. Key components include: COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE, LH, PROTECTOR, FRONT BUMPER, COVER, FRONT BUMPER ARM HOLE, RH, COVER, FRONT BUMPER ARM HOLE, LH.
