Toyota PIXIS TRUCK — ENGINE OVERHAUL GASKET KIT

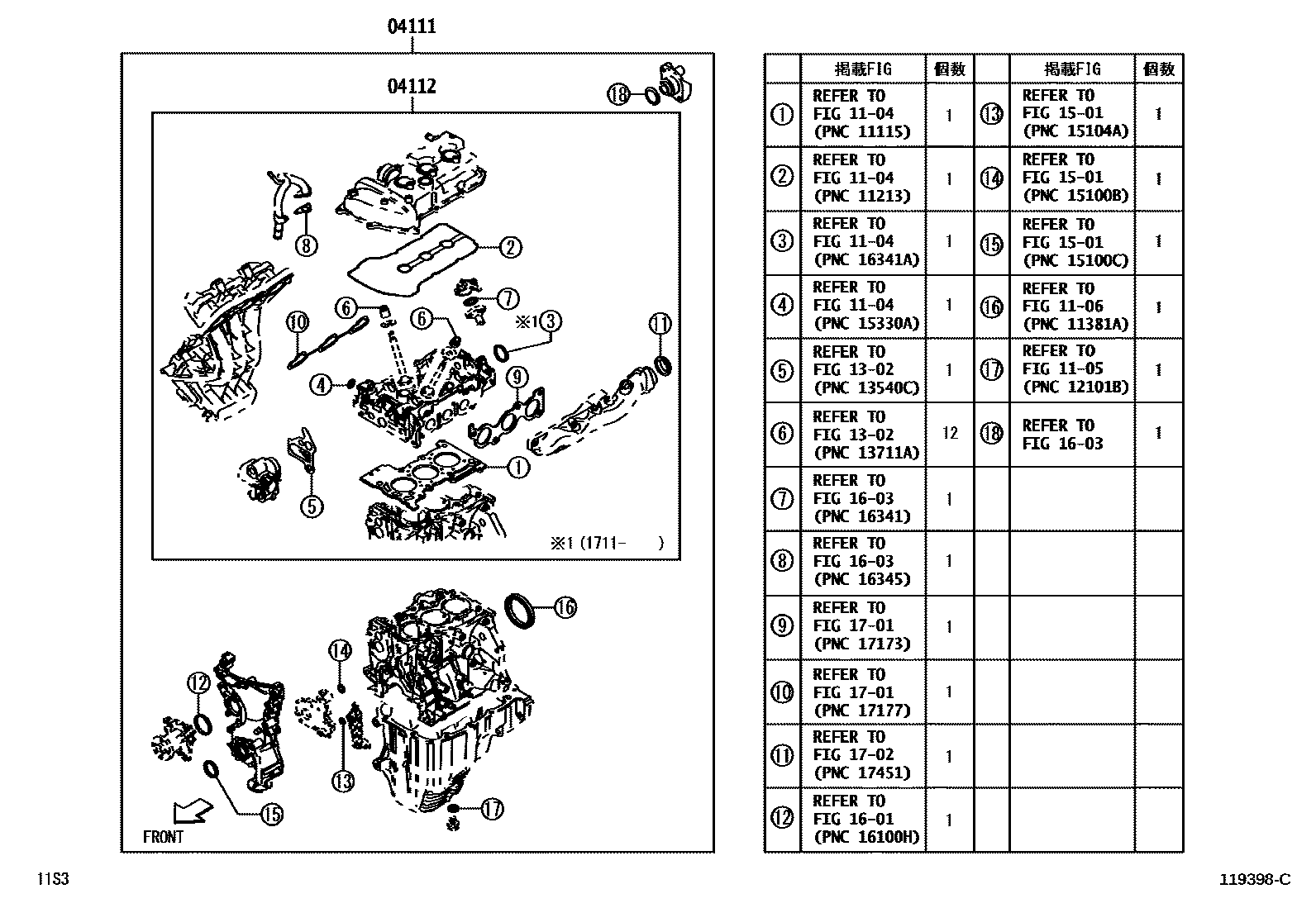

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-B5012i201409-201603
main04111-B5014i201603-201610
main04111-B5016i201711-201810
main04111-B5017i201810-201906
main04111-B5018i201907-202009
main04111-B5019i202009
04112GASKET KIT, ENGINE VALVE GRIND
main04112-B5011i201409-201603
main04112-B5013i201711-201810
main04112-B5014i201810-201907
main04112-B5015i201907-202009
main04112-B5016i202009
1104CYLINDER HEAD
→ Go to FIG 11-04
1105CYLINDER BLOCK
→ Go to FIG 11-05
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
1501ENGINE OIL PUMP
→ Go to FIG 15-01
1601WATER PUMP
→ Go to FIG 16-01
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
1702EXHAUST PIPE
→ Go to FIG 17-02

11 parts on this diagram · 1 diagram in section

ENGINE OVERHAUL GASKET KIT for Toyota PIXIS TRUCK

This section contains 11 genuine Toyota parts for the ENGINE OVERHAUL GASKET KIT system of the Toyota PIXIS TRUCK. Key components include: GASKET KIT, ENGINE OVERHAUL, GASKET KIT, ENGINE VALVE GRIND, CYLINDER HEAD, CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE.
