Toyota PIXIS TRUCK — ELECTRONIC FUEL INJECTION SYSTEM

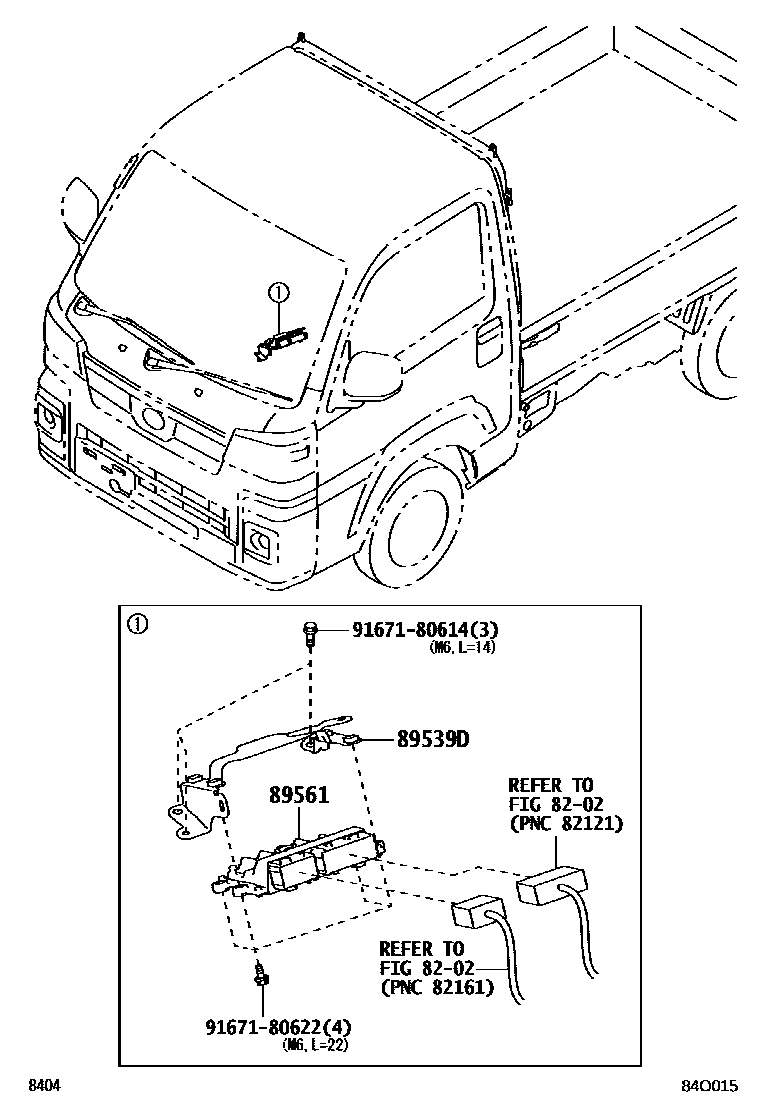

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

89539DBRACKET, COMPUTER

main89539-B5220i202112

89561COMPUTER, FUEL INJECTION

main89560-B5W30i202112-202207

main89560-B5W31i202208

main89560-B5W70i202112-202207

main89560-B5W71i202208

main89560-B5Y40i202112-202207

main89560-B5Y41i202208

main89560-B5Y70i202112-202202

main89560-B5Y71i202203-202207

main89560-B5Y72i202208

main89560-B5W20supersedes 89560-B5W11i202112-202207

main89560-B5W21supersedes 89560-B5W11i202208

main89560-B5W60supersedes 89560-B5W51i202112-202207

main89560-B5W61supersedes 89560-B5W51i202208

main89560-B5X60supersedes 89560-B5X52i202112-202202

main89560-B5X61supersedes 89560-B5X52i202203-202207

main89560-B5X62supersedes 89560-B5X52i202208

main89560-B5X70supersedes 89560-B5X52i202112-202202

main89560-B5X71supersedes 89560-B5X52i202203-202207

main89560-B5X72supersedes 89560-B5X52i202208

main89560-B5Y20i202112-202207

main89560-B5Y21i202208

main89560-B5Y30i202112-202207

main89560-B5Y31i202208

main89560-B5Y50supersedes 89560-B5X52i202112-202202

main89560-B5Y51supersedes 89560-B5X52i202203-202207

main89560-B5Y52supersedes 89560-B5X52i202208

main89560-B5Y60supersedes 89560-B5X52i202112-202202

main89560-B5Y61supersedes 89560-B5X52i202203-202207

main89560-B5Y62supersedes 89560-B5X52i202208

9167180614

main91671-80614

9167180622

main91671-80622

5 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota PIXIS TRUCK

This section contains 5 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota PIXIS TRUCK. Key components include: WIRING & CLAMP, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION.
