Toyota PIXIS TRUCK — CLEARANCE & BACK SONAR

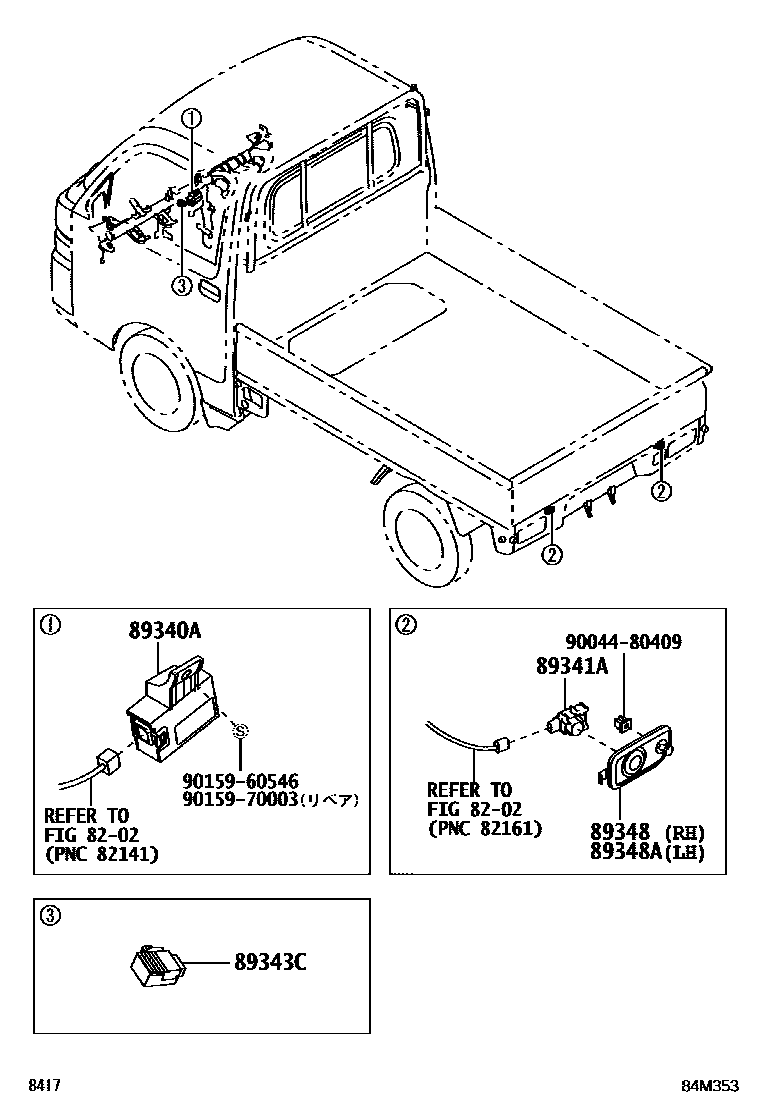

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-B5050i202009

main89340-B5060i202009

main00000-00000i202009-202112

89341ASENSOR, ULTRASONIC, NO.1

main89341-B2020-D7×2i202009

-

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010i202009

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-B5030-D0i202009

-

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-B5020-D0i202009

-

9004480409

main90044-80409

9015960546

main90159-60546

9015970003

main90159-70003

9 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota PIXIS TRUCK

This section contains 9 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota PIXIS TRUCK. Key components include: WIRING & CLAMP, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.1, BUZZER, CLEARANCE WARNING, NO.1, RETAINER, ULTRASONIC SENSOR, NO.1.
