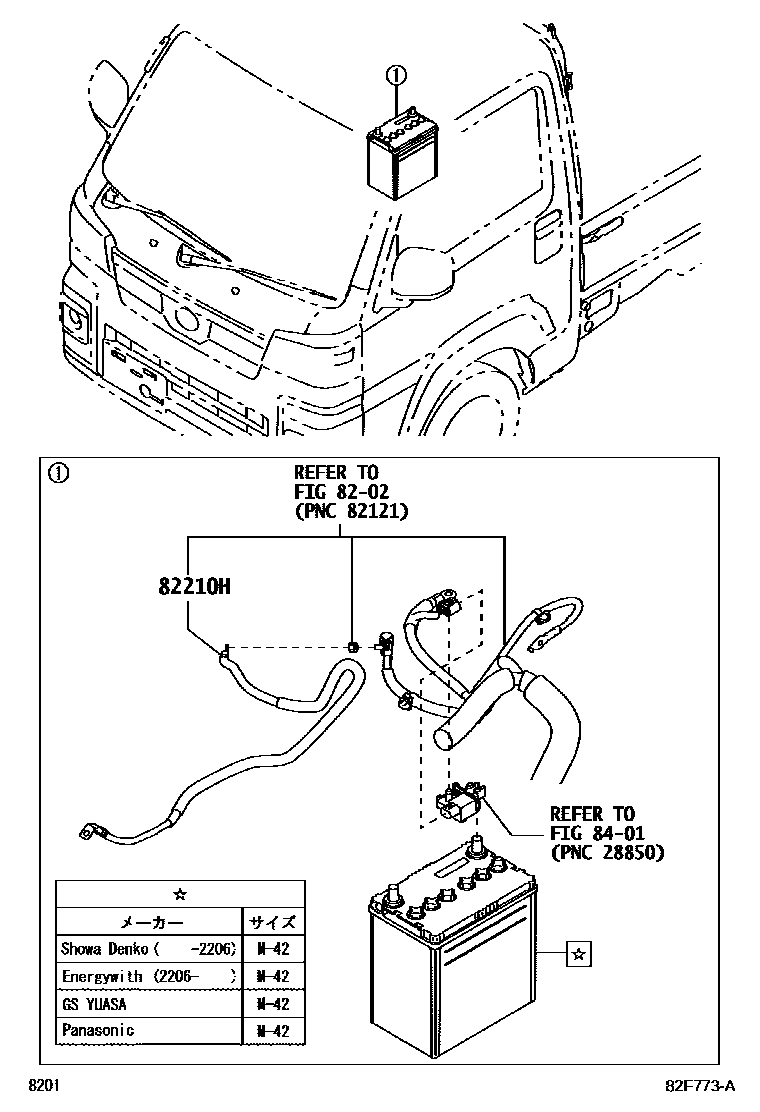

Toyota PIXIS TRUCK — BATTERY & BATTERY CABLE

8202WIRING & CLAMP

→ Go to FIG 82-02

82210HFUSIBLE LINK

main82627-B5100i202112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota PIXIS TRUCK

This section contains 3 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota PIXIS TRUCK. Key components include: WIRING & CLAMP, FUSIBLE LINK, SWITCH & RELAY & COMPUTER.
