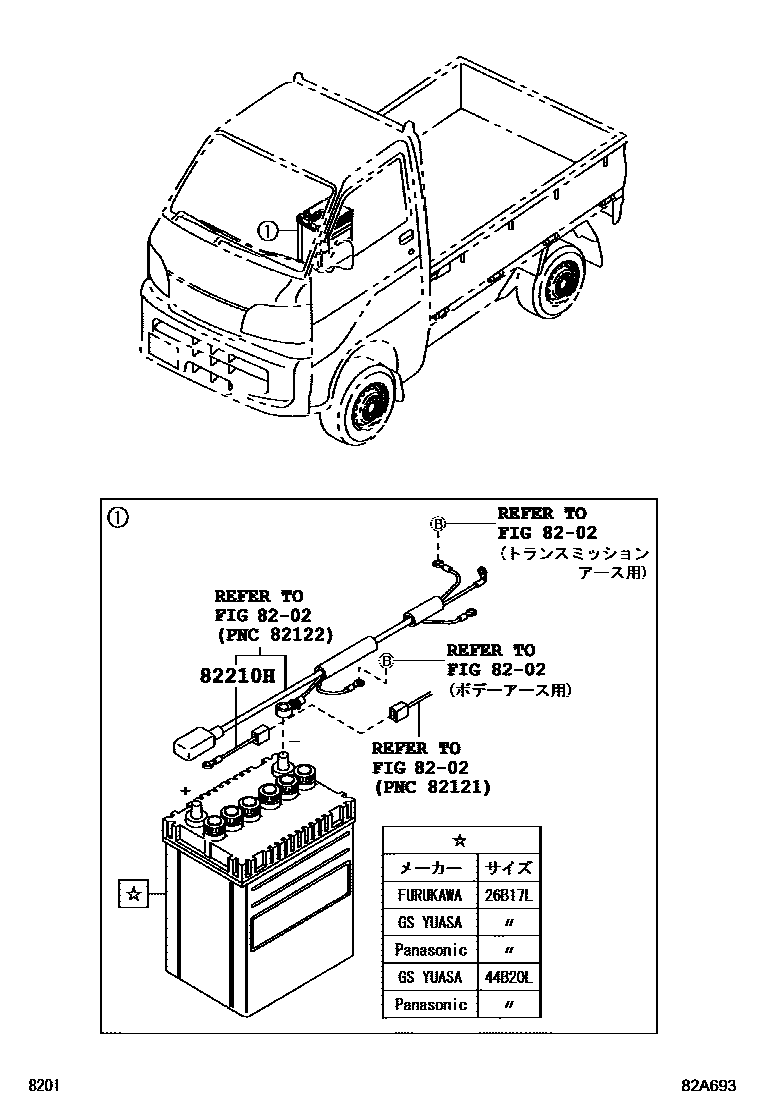

Toyota PIXIS TRUCK — BATTERY & BATTERY CABLE

8202WIRING & CLAMP

→ Go to FIG 82-02

82210HFUSIBLE LINK

main82627-B5020i201112-201403

main82627-B5021i201404

2 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota PIXIS TRUCK

This section contains 2 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota PIXIS TRUCK. Key components include: WIRING & CLAMP, FUSIBLE LINK.
