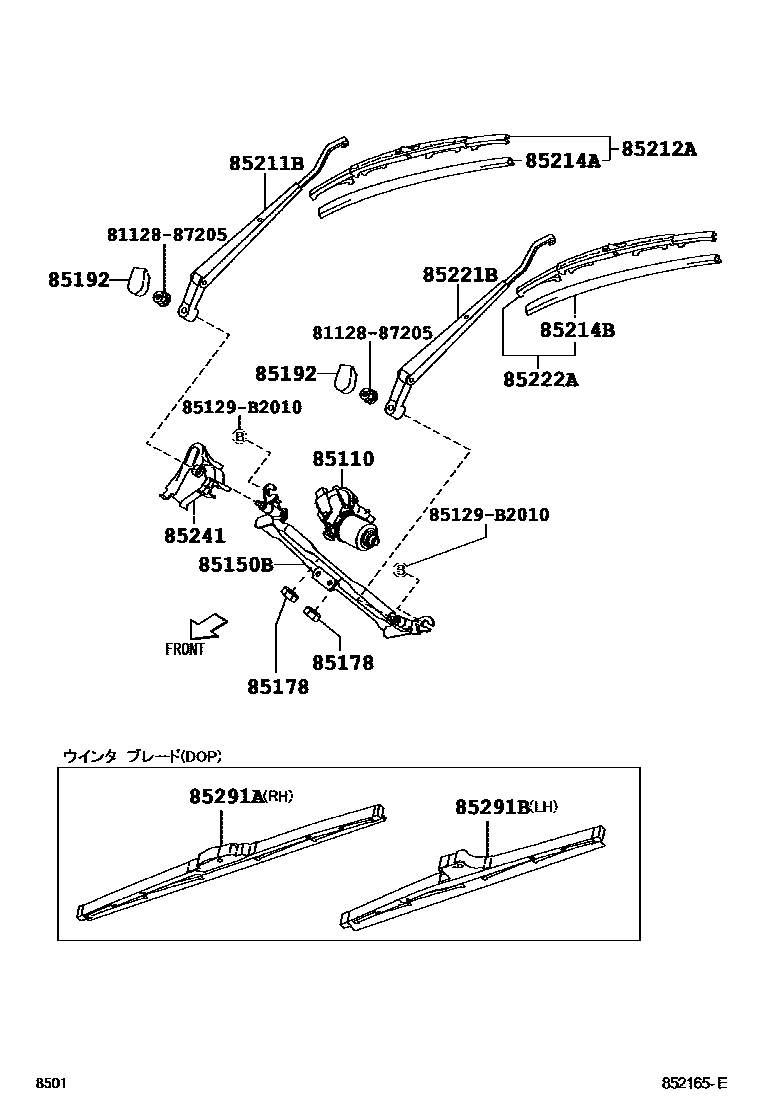

Toyota PIXIS SPACE — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85150BLINK ASSY, WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85241COVER, WINDSHIELD WIPER
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
8112887205NUT, HEADLAMP
main81128-87205
85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD
main85129-B2010
15 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota PIXIS SPACE
This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PIXIS SPACE. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
