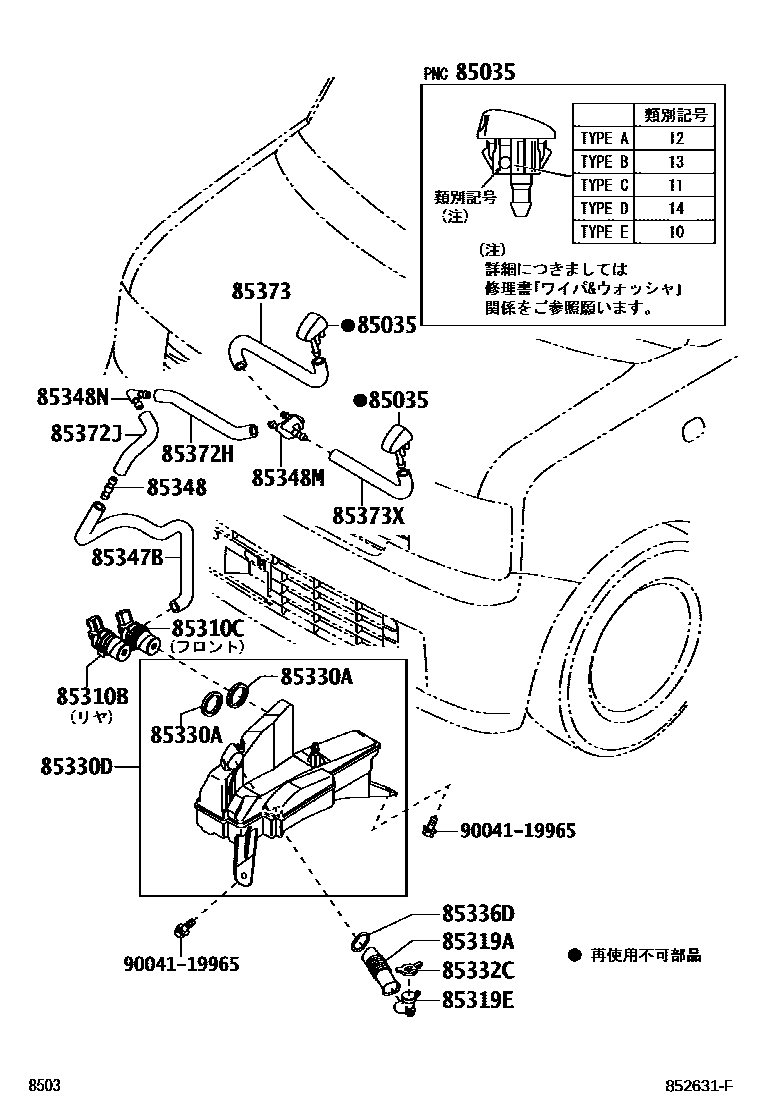

Toyota PIXIS SPACE — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER
85310CMOTOR & PUMP ASSY, WASHER
85319AHOSE, INLET
85319EINLET WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85330DJAR ASSY, WASHER
85332CCAP, FRONT WASHER TANK
85336DPACKING, WINDSHIELD WASHER JAR
85347BHOSE, TANK
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2
9004119965
main90041-19965
18 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota PIXIS SPACE
This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PIXIS SPACE. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR & PUMP ASSY, WINDSHIELD WASHER, MOTOR & PUMP ASSY, WASHER, HOSE, INLET, INLET WASHER.
