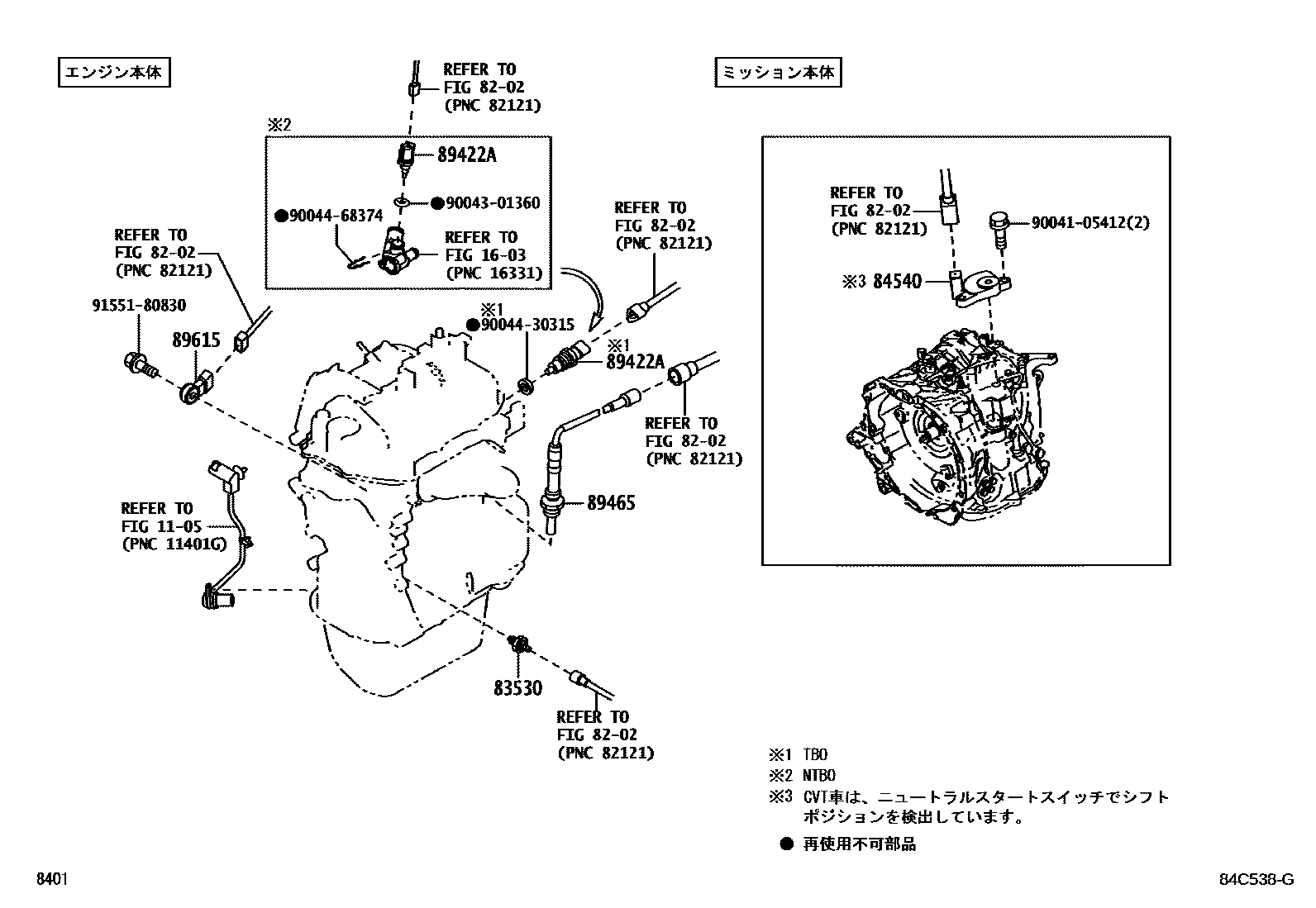

Toyota PIXIS SPACE — SWITCH & RELAY & COMPUTER

0001 1�����&����� 0002 1�������� 0003 1������������ NO.1 0004 1������������ NO.2 0005 1������� 0006 1���&���

1105

1603

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-B2010iL575,585..PS2201109-201306

84540SWITCH ASSY, NEUTRAL START

main84540-B2050iL575,585201306

main84540-B2060iL575,585..CTMG,CTMX,L,X201109-201201

89422ASENSOR, WATER TEMPERATURE

main89422-33030iL575,585..CTMRS201109-201306

main89422-B2010iL575,585..CTMG,CTMX,L,X201109-201306

89465SENSOR, OXYGEN

main89465-B2100iL575,585201109-201306

main89465-B2101iL575,585201306

89615SENSOR, KNOCK CONTROL

main89615-20090iL575,585..PS2201109-201306

9004105412

main90041-05412

9004301360

main90043-01360

9004430315

main90044-30315

9004468374

main90044-68374

9155180830

main91551-80830

13 parts on this diagram · 6 diagrams in section
