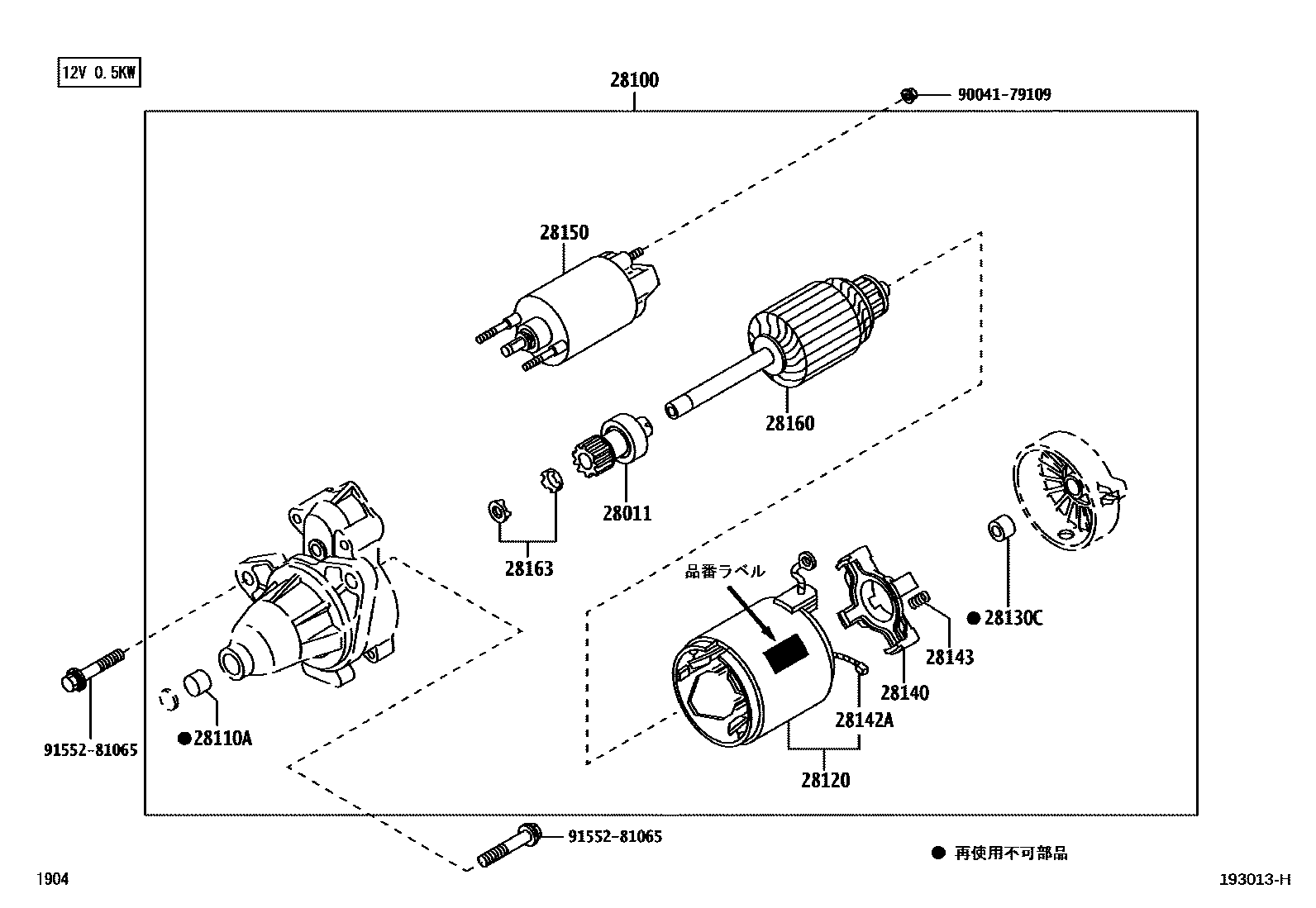

Toyota PIXIS SPACE — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
main28100-B2170supersedes 28100-B2030iKF#..L575..(CTMRS,CTMX,L)..PS1; KF#..L585..(CTMRS,CTMX,L)..PS1201109-201205
28110ABEARING(FOR STARTER HOUSING)
main28277-87201supersedes 28271-87501iKF#..L575..(CTMRS,CTMX,L)..PS1; KF#..L585..(CTMRS,CTMX,L)..PS1201109-201205
28120YOKE ASSY, STARTER
28130CBEARING, STARTER FLANGE
main28277-87201supersedes 28271-87502iKF#..L575..(CTMRS,CTMX,L)..PS1; KF#..L585..(CTMRS,CTMX,L)..PS1201109-201205
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
main28142-97501×2iKFVE..L575,585..PS2;KFDET..L575,585..PS2;KFVE..L575,585..(CTMG,X)..PS1201109-201306
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
9004179109
main90041-79109
9155281065
main91552-81065
13 parts on this diagram · 4 diagrams in section
STARTER for Toyota PIXIS SPACE
This section contains 17 genuine Toyota parts for the STARTER system of the Toyota PIXIS SPACE. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, BUSH OR BEARING, PLANET CARRIER SHAFT, STARTER ASSY, BEARING(FOR STARTER HOUSING).
