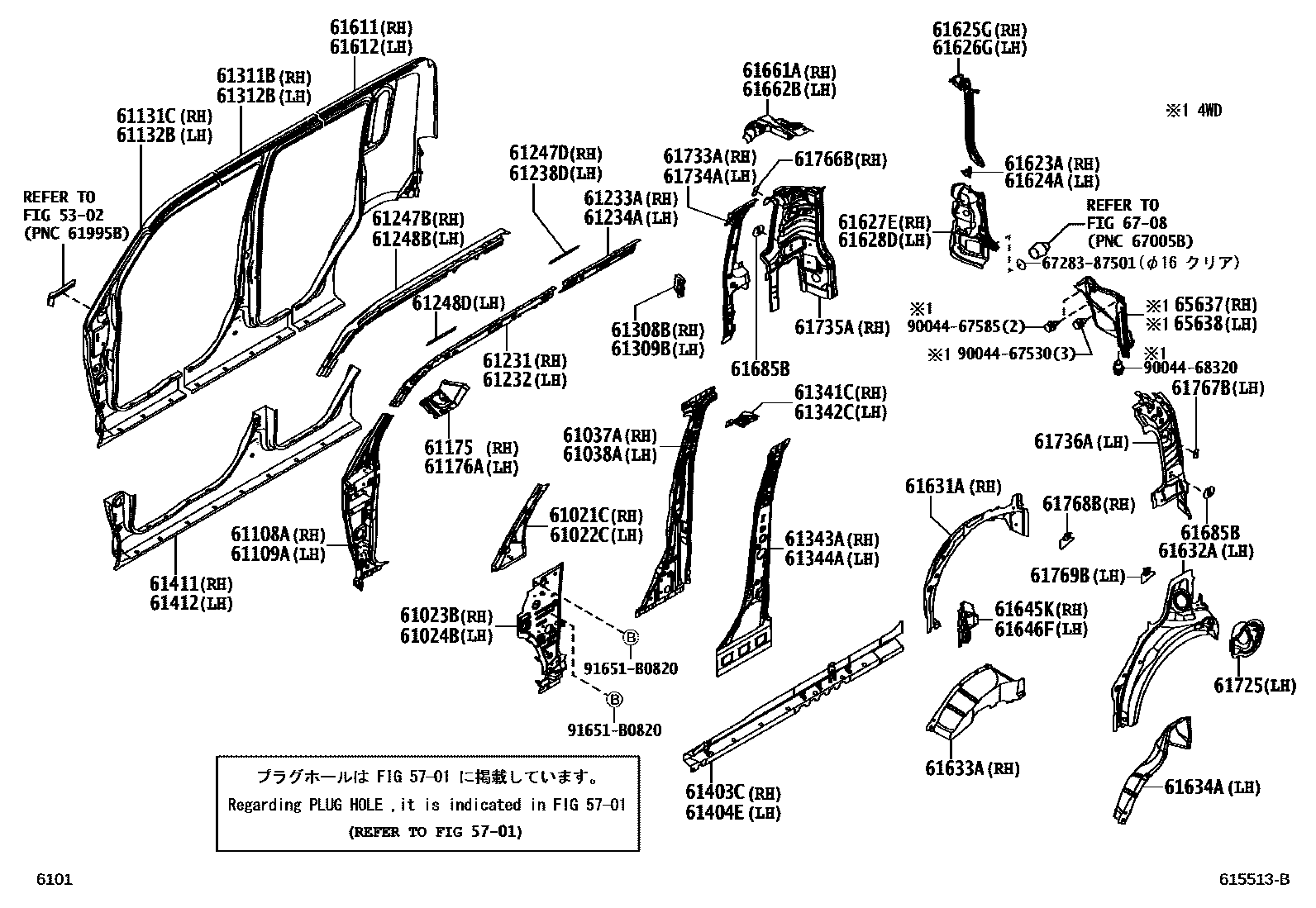

Toyota PIXIS SPACE — SIDE MEMBER
5302HOOD & FRONT FENDER
5701HOLE PLUG
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61238DBRACKET, ASSIST GRIP, NO.2 LH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61247DBRACKET, ASSIST GRIP, RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61248DBRACKET, ASSIST GRIP, LH
61308BRETAINER SUB-ASSY, DOOR LOCK STRIKER, RH
61309BRETAINER SUB-ASSY, DOOR LOCK STRIKER, LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61341CPILLAR, CENTER BODY, INNER UPPER RH
61342CPILLAR, CENTER BODY, INNER UPPER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645KGUSSET, QUARTER WHEEL HOUSE INNER, RH
61646FGUSSET, QUARTER WHEEL HOUSE INNER, LH
61661AEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH
61685BBRACKET, REAR SEATBACK STOPPER
61725BOX, FUEL INLET
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
6708BACK DOOR PANEL & GLASS
6728387501BASE, BACK DOOR STOPPER
main67283-87501
9004467530
main90044-67530
9004467585
main90044-67585
9004468320
main90044-68320
91651B0820
main91651-B0820
69 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota PIXIS SPACE
This section contains 71 genuine Toyota parts for the SIDE MEMBER system of the Toyota PIXIS SPACE. Key components include: HOOD & FRONT FENDER, HOLE PLUG, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH.
