Toyota PIXIS SPACE — PARTIAL ENGINE ASSEMBLY

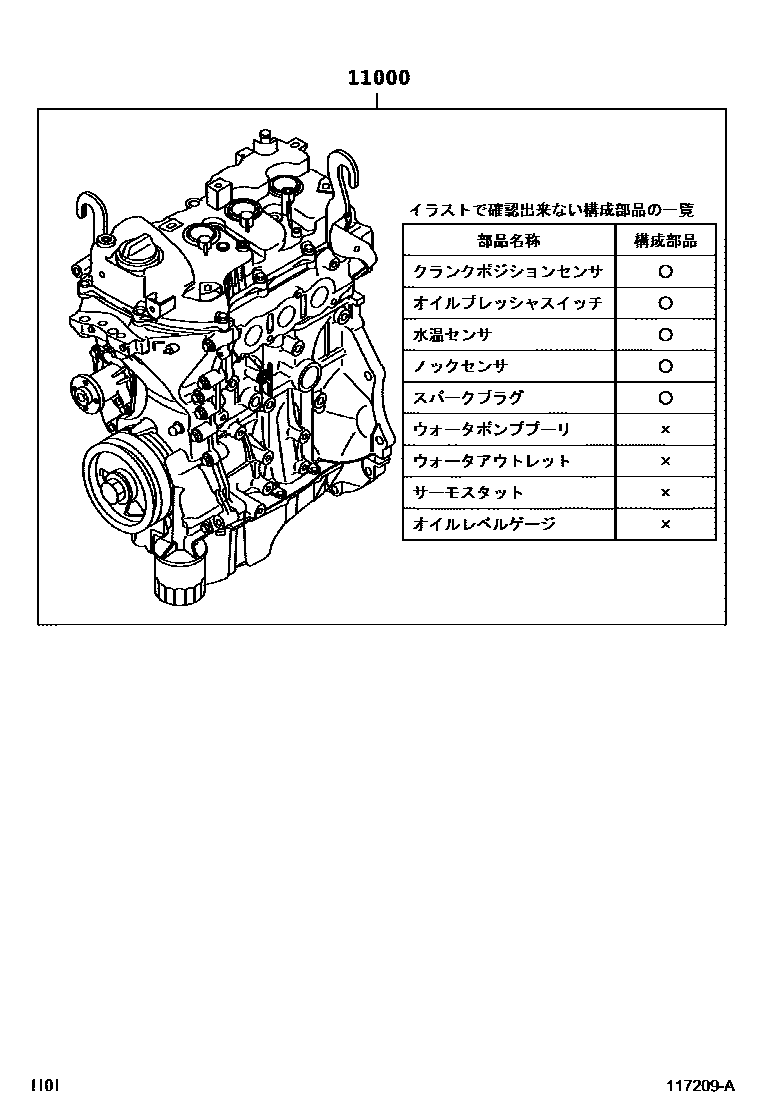

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-B2A17i201109-201204
sub19000-B2A61
sub82715-B2670
main19000-B2A35i201204-201212
sub19000-B2A91
sub82715-B2670
sub90041-79300
main19000-B2A36i201306-201307
sub82715-B2670
sub90041-79300
main19000-B2A41i201205-201212
sub19000-B2B11
sub82715-B2670
main19000-B2A42i201306-201307
sub82715-B2670
main19000-B2B01i201307-201602
main19000-B2B02i201602
sub19000-B2B03
sub17107-B2082
sub94188-00841
main19000-B2C51i201307-201602
main19000-B2C52i201602
main19000-B2T85i201109-201205
sub19000-B2C11
sub82715-B2670

1 parts on this diagram · 1 diagram in section
