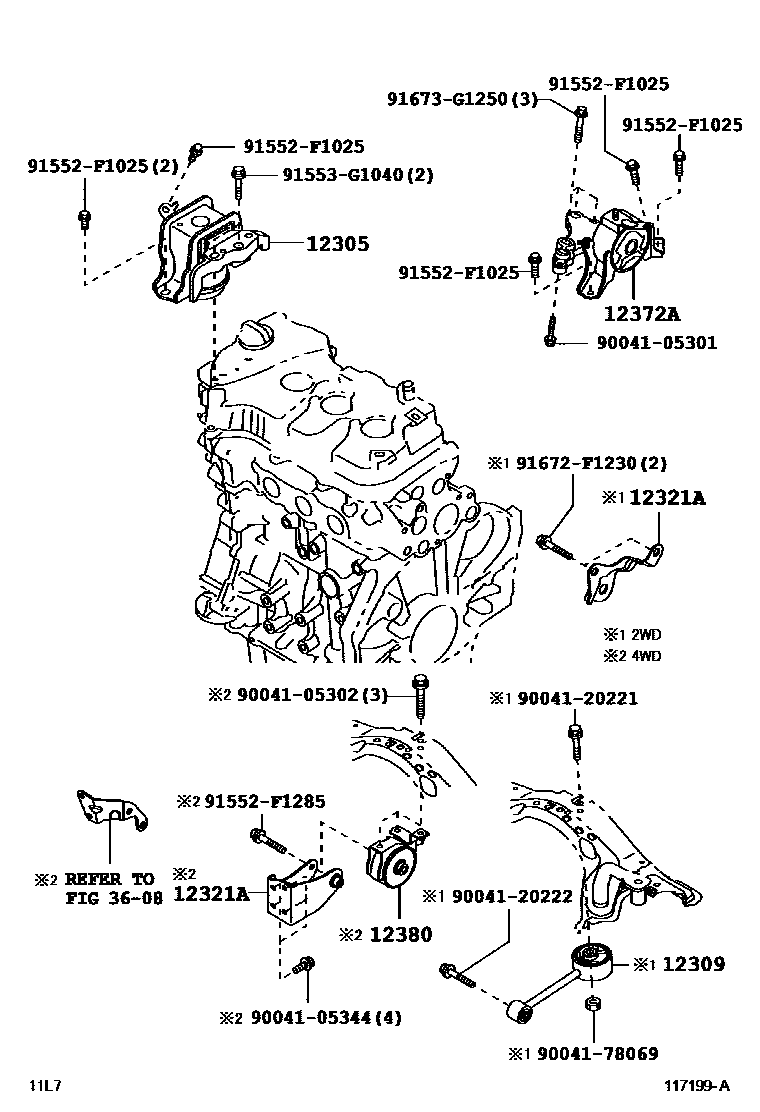

Toyota PIXIS SPACE — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12309ROD SUB-ASSY, ENGINE MOVING CONTROL
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12380INSULATOR ASSY, ENGINE MOUNTING, REAR
3608TRANSFER ASSEMBLY & GASKET KIT
9004105301
main90041-05301
9004105302
main90041-05302
9004105344
main90041-05344
9004120221
main90041-20221
9004120222
main90041-20222
9004178069
main90041-78069
91552F1025
main91552-F1025
91552F1285
main91552-F1285
91553G1040
main91553-G1040
91672F1230
main91672-F1230
91673G1250
main91673-G1250
17 parts on this diagram · 1 diagram in section
MOUNTING for Toyota PIXIS SPACE
This section contains 17 genuine Toyota parts for the MOUNTING system of the Toyota PIXIS SPACE. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), INSULATOR ASSY, ENGINE MOUNTING, REAR.
