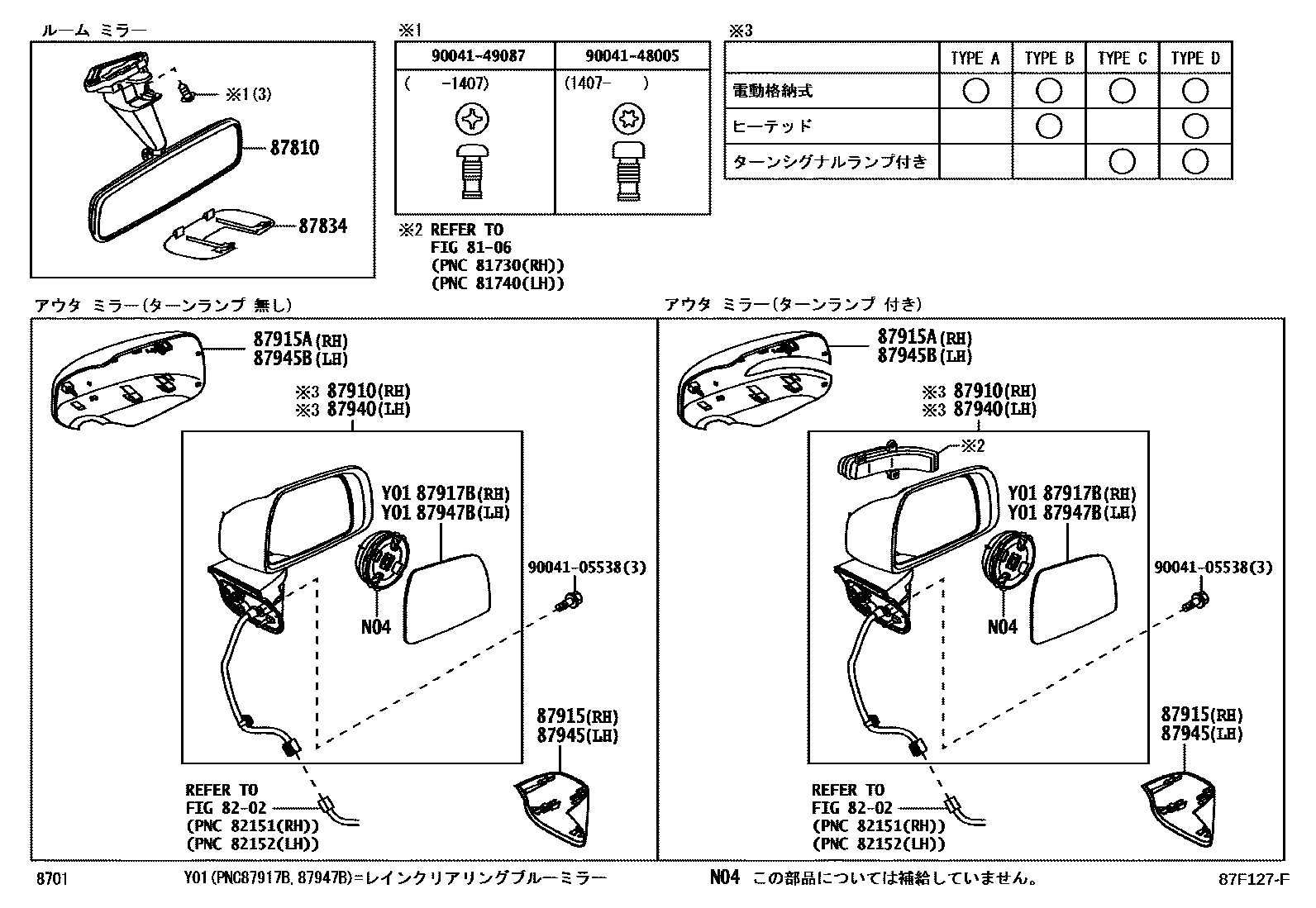

Toyota PIXIS SPACE — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8202WIRING & CLAMP
87810MIRROR ASSY, INNER REAR VIEW
LT.GRAY,TRIM1#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM1#
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
PINK PEARL SE,R65 ,X82
LT.ROSE M.M.,T22
IVORY,T19
LIME GREEN ME.,G51 ,X84
PALE BLUE M.M.,B69; PALE BLUE M.M.,B69 ,X81
DK.PURPLISH BLUE ME.CS,B70
87915ACOVER, OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL MC.CS,W24
SILVER ME.,S28
BLACK M.M.,X07
BROWN MC.CS,R59
PINK PEARL SE,R65 ,X82
LT.ROSE M.M.,T22
IVORY,T19
LIME GREEN ME.,G51 ,X84
PALE BLUE M.M.,B69; PALE BLUE M.M.,B69 ,X81
DK.PURPLISH BLUE ME.CS,B70
87945BCOVER, OUTER MIRROR, LH
9004105538
main90041-05538
9004148005
main90041-48005
9004149087
main90041-49087
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota PIXIS SPACE
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota PIXIS SPACE. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, WIRING & CLAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
