Toyota PIXIS SPACE — METER

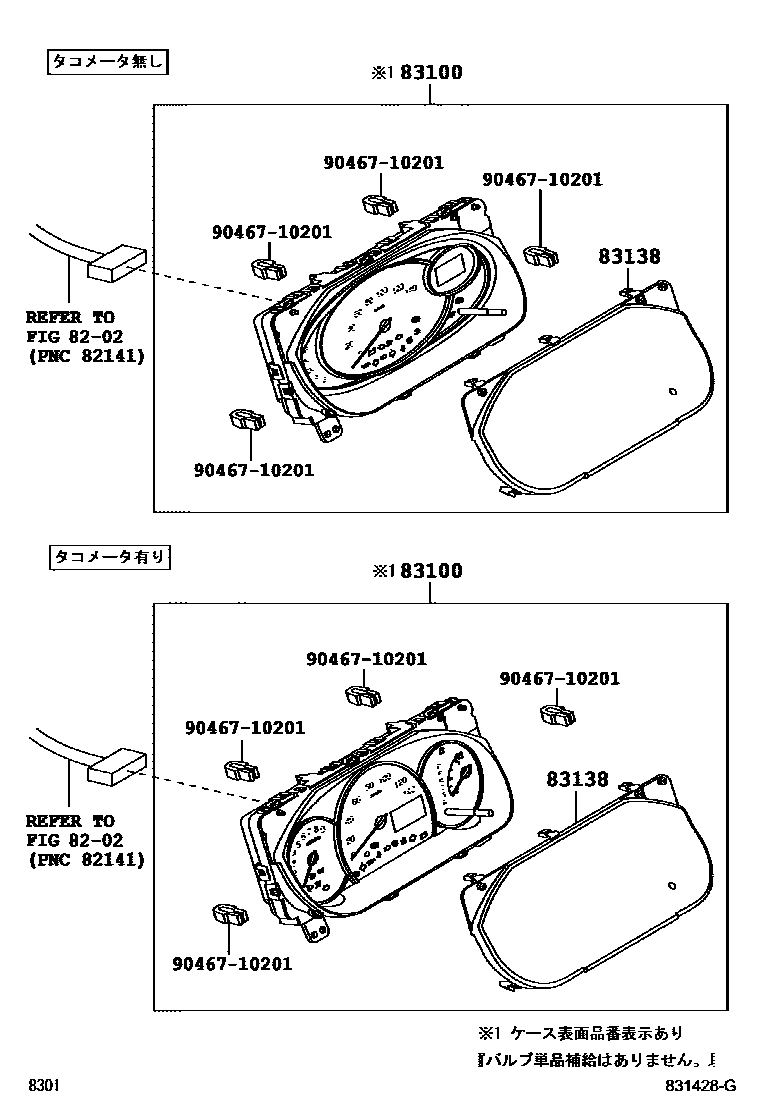

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

83100METER ASSY, COMBINATION

main83800-B2823i201109-201205

main83800-B2824i201205-201306

main83800-B2842i201109-201111

main83800-B2843i201112-201204

main83800-B2B02i201109-201111

main83800-B2B03i201112-201204

main83800-B2B13i201109-201111

main83800-B2B14i201204-201306

main83800-B2B15i201112-201204

main83800-B2B33i201109-201111

main83800-B2B34i201204-201306

main83800-B2B35i201112-201204

main83800-BA190i201306-201603

main83800-BA191i201604

main83800-BA200i201306-201603

main83800-BA201i201604

main83800-BA210i201306-201603

main83800-BA211i201604

main83800-BA330i201306-201603

main83800-BA331i201604

main83800-BA470i201404-201504

83138GLASS, SPEEDOMETER

main83852-B2030i201109-201204

main83852-B2170i201306-201604

main83852-B2180i201306-201604

9046710201

main90467-10201

4 parts on this diagram · 2 diagrams in section

METER for Toyota PIXIS SPACE

This section contains 4 genuine Toyota parts for the METER system of the Toyota PIXIS SPACE. Key components include: WIRING & CLAMP, METER ASSY, COMBINATION, GLASS, SPEEDOMETER.
