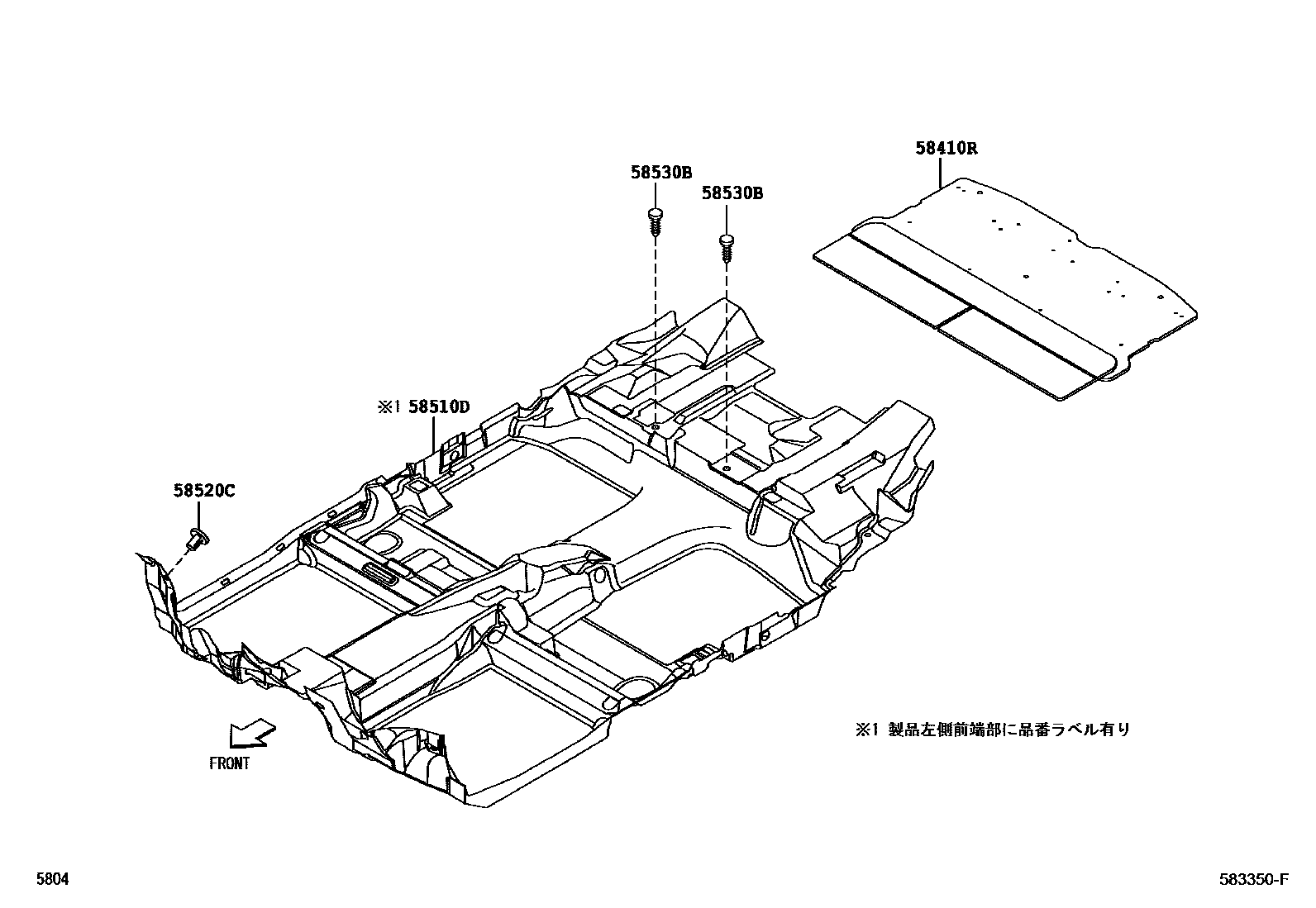

Toyota PIXIS SPACE — MAT & CARPET

58410RBOARD ASSY, DECK

main58410-B2270-B0i201109-201306

GRAY,TRIM1#

main58410-B2280-B0i201306

GRAY,TRIM1#

58510DCARPET ASSY, FLOOR, FRONT

main58510-B2J70-B1i201306

DK.GRAY,TRIM1#

main58510-B2J80-B1i201306

DK.GRAY,TRIM1#

main58510-B2T00-B0i201306

DK.GRAY,TRIM1#

main58510-B2K60-B1i201109-201306

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-67397i201109-201204

58530BCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-B2×2i201306-201610

DK.GRAY

main90044-68046-C2×2i201610

BLACK

4 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota PIXIS SPACE

This section contains 4 genuine Toyota parts for the MAT & CARPET system of the Toyota PIXIS SPACE. Key components include: BOARD ASSY, DECK, CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET).
