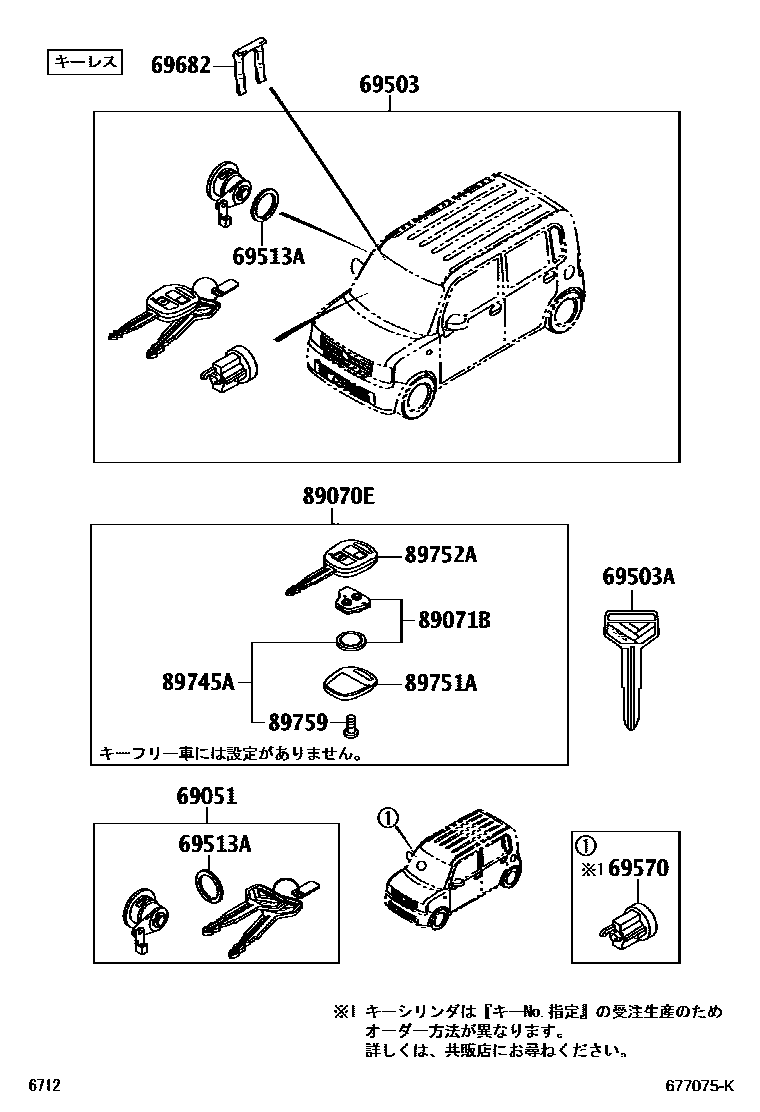

Toyota PIXIS SPACE — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69513APAD, DOOR CYLINDER
69570CYLINDER ASSY, IGNITION SWITCH LOCK
69682RETAINER, LOCK CYLINDER
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89759SCREW, DOOR CONTROL TRANSMITTER
12 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota PIXIS SPACE
This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PIXIS SPACE. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER SET, LOCK, KEY, BLANK, KEY, SUB, PAD, DOOR CYLINDER.
