Toyota PIXIS SPACE — IGNITION COIL & SPARK PLUG / GLOW PLUG

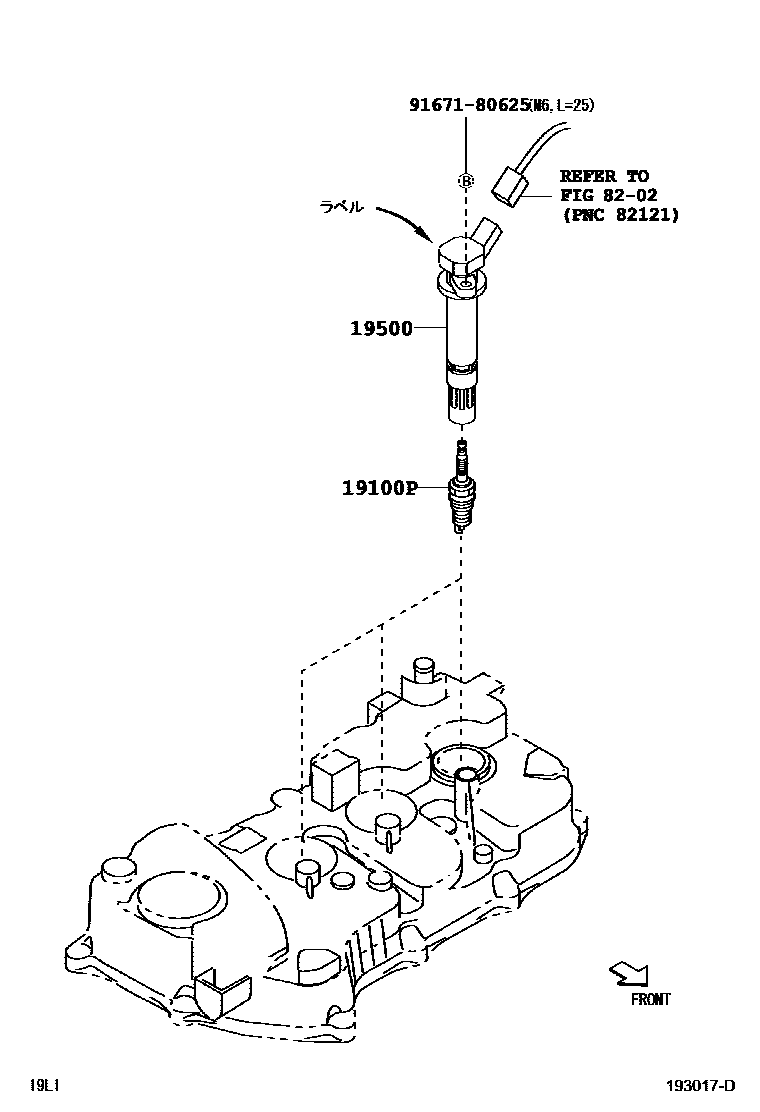

Parts diagram

19100PPLUG, SPARK

main90048-51195×3i201109-201209

main90048-51198×3i201109-201209

main90048-51199×3i201109-201209

main90048-51201×3i201109-201204

main90048-51204×3i201204-201209

main90048-51207×3i201209-201211

main90048-51208×3i201306

main90048-51209×3i201306-201308

main90048-51210×3i201306-201308

main90048-51213×3i201308

main90048-51214×3i201308

19500COIL ASSY, IGNITION

main19500-B2050×3i201109-201204

main19500-B2051×3i201512

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180625

main91671-80625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota PIXIS SPACE

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota PIXIS SPACE. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, WIRING & CLAMP.
