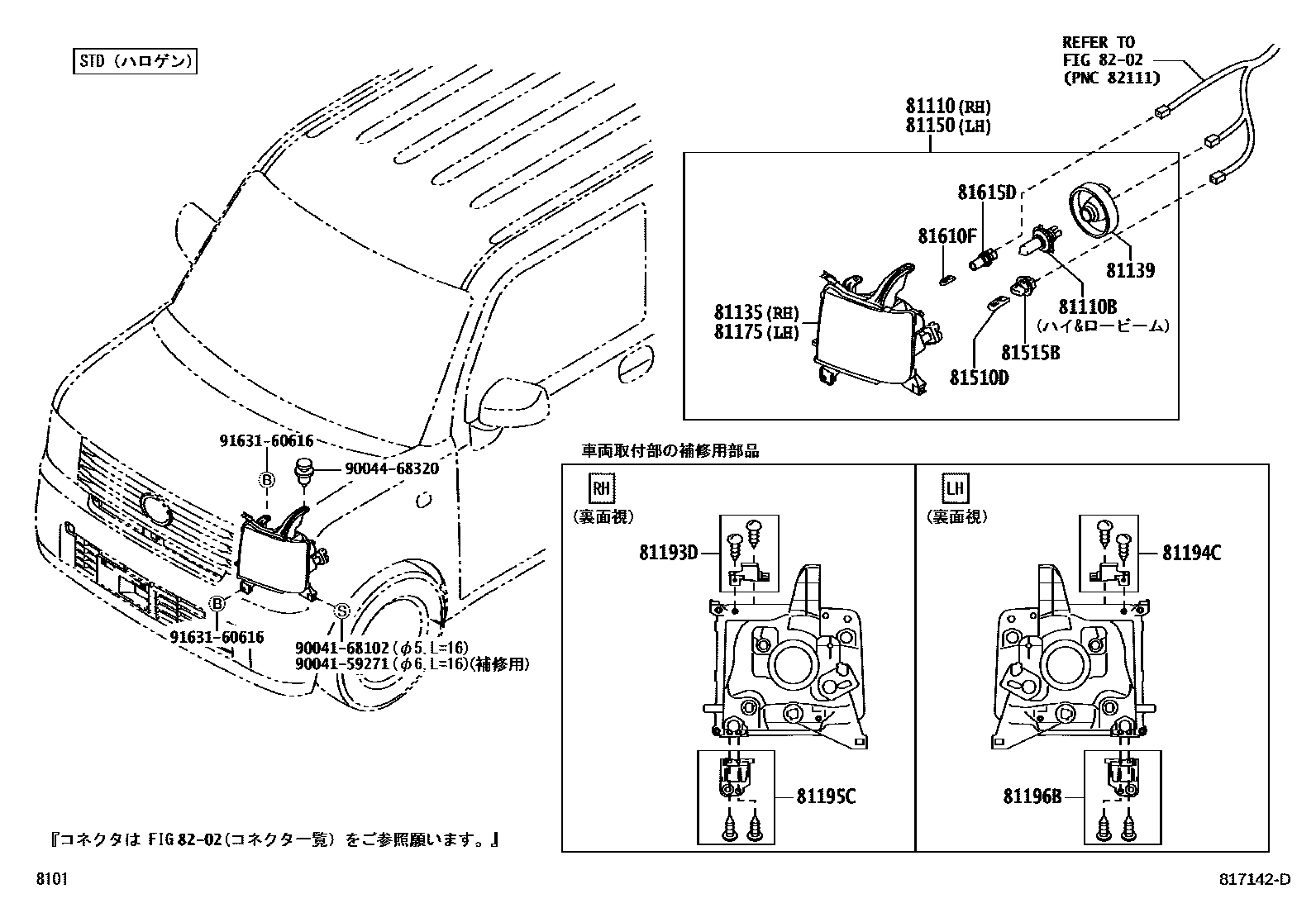

Toyota PIXIS SPACE — HEADLAMP
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81135UNIT ASSY, HEADLAMP, RH
81139COVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81195SCREW, HEADLAMP
81195CRETAINER, RH HEADLAMP PROTECTOR, LOWER LH
81196BRETAINER, LH HEADLAMP PROTECTOR, LOWER RH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
8202WIRING & CLAMP
9004159271
main90041-59271
9004168102
main90041-68102
9004468320
main90044-68320
9163160616
main91631-60616
20 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota PIXIS SPACE
This section contains 31 genuine Toyota parts for the HEADLAMP system of the Toyota PIXIS SPACE. Key components include: COVER, HEADLAMP, RH, COVER, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH.
