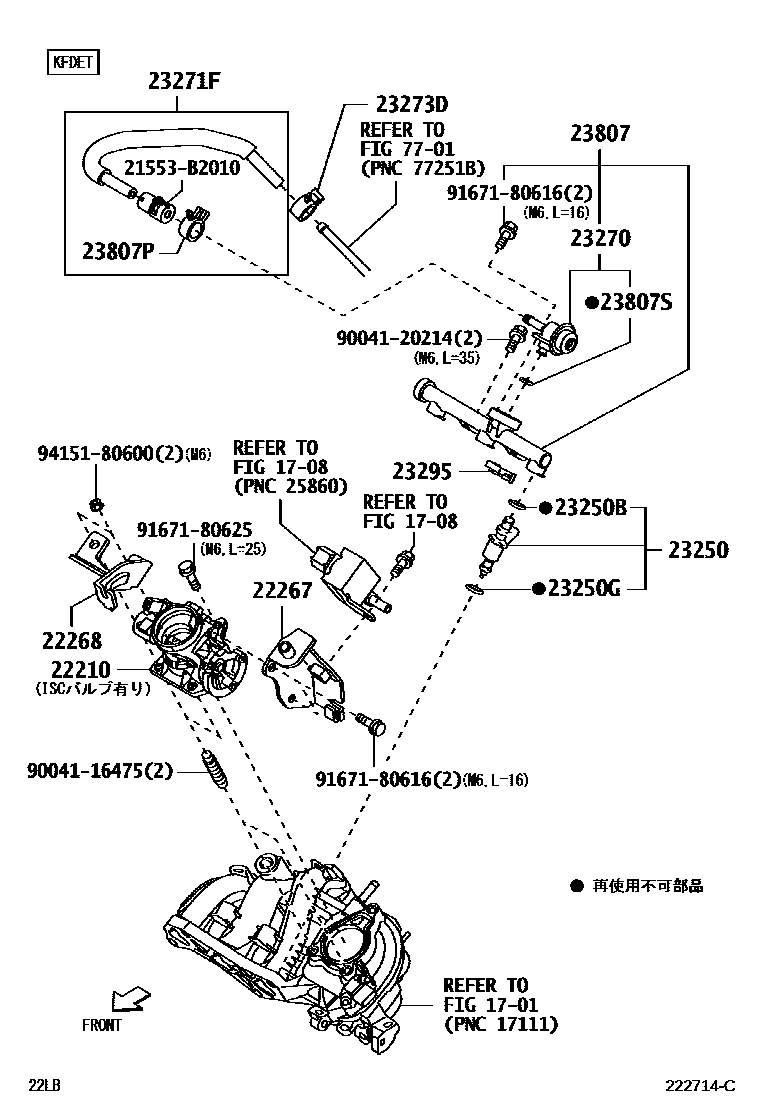

Toyota PIXIS SPACE — FUEL INJECTION SYSTEM
1701MANIFOLD
1708VACUUM PIPING
22210BODY ASSY, THROTTLE
22267BRACKET, THROTTLE BODY
22268BRACKET, THROTTLE BODY, NO.2
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23271FHOSE, FUEL
23273DCLIP(FOR FUEL HOSE NO.2)
23295HOLDER, INJECTOR, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807PCLIP(FOR FUEL HOSE)
23807SRING, O(FOR FUEL DELIVARY PIPE)
7701FUEL TANK & TUBE
21553B2010GUIDE
main21553-B2010
9004116475
main90041-16475
9004120214
main90041-20214
9167180616
main91671-80616
9167180625
main91671-80625
9415180600
main94151-80600
22 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota PIXIS SPACE
This section contains 26 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PIXIS SPACE. Key components include: MANIFOLD, VACUUM PIPING, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, BRACKET, THROTTLE BODY.
