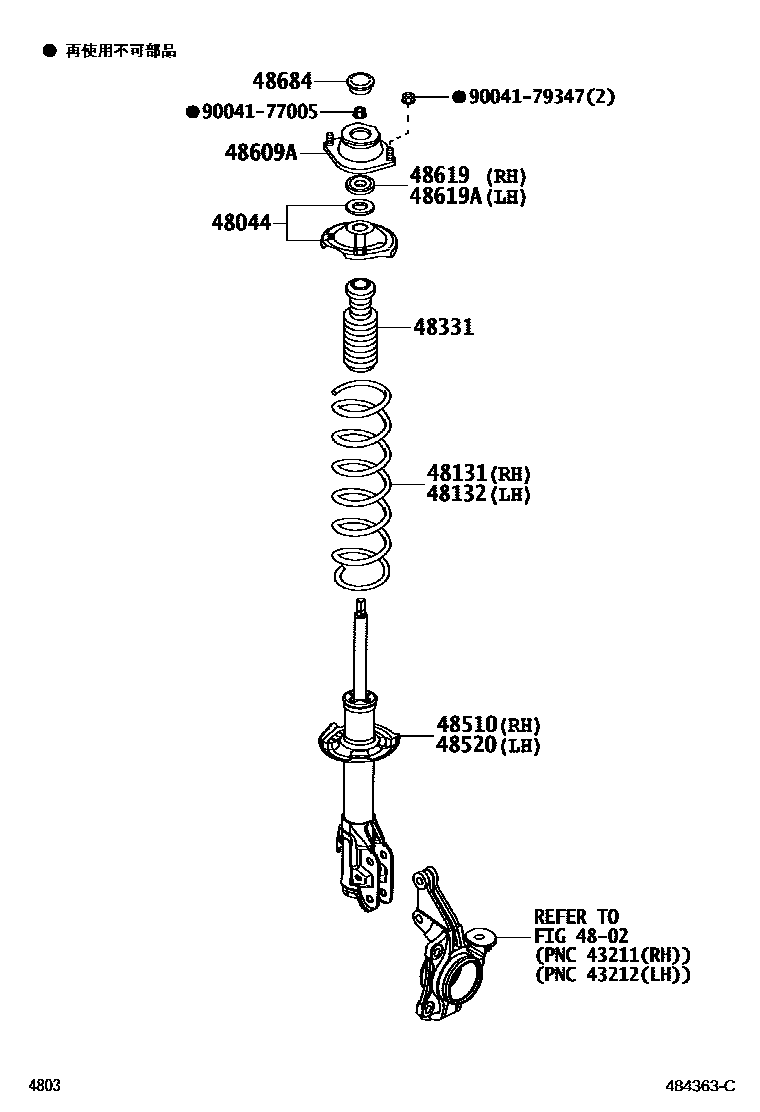

Toyota PIXIS SPACE — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
9004177005
main90041-77005
9004179347
main90041-79347
13 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota PIXIS SPACE
This section contains 19 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota PIXIS SPACE. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SEAT SUB-ASSY, FRONT SPRING, NO.1, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER, FRONT SPRING, NO.1.
