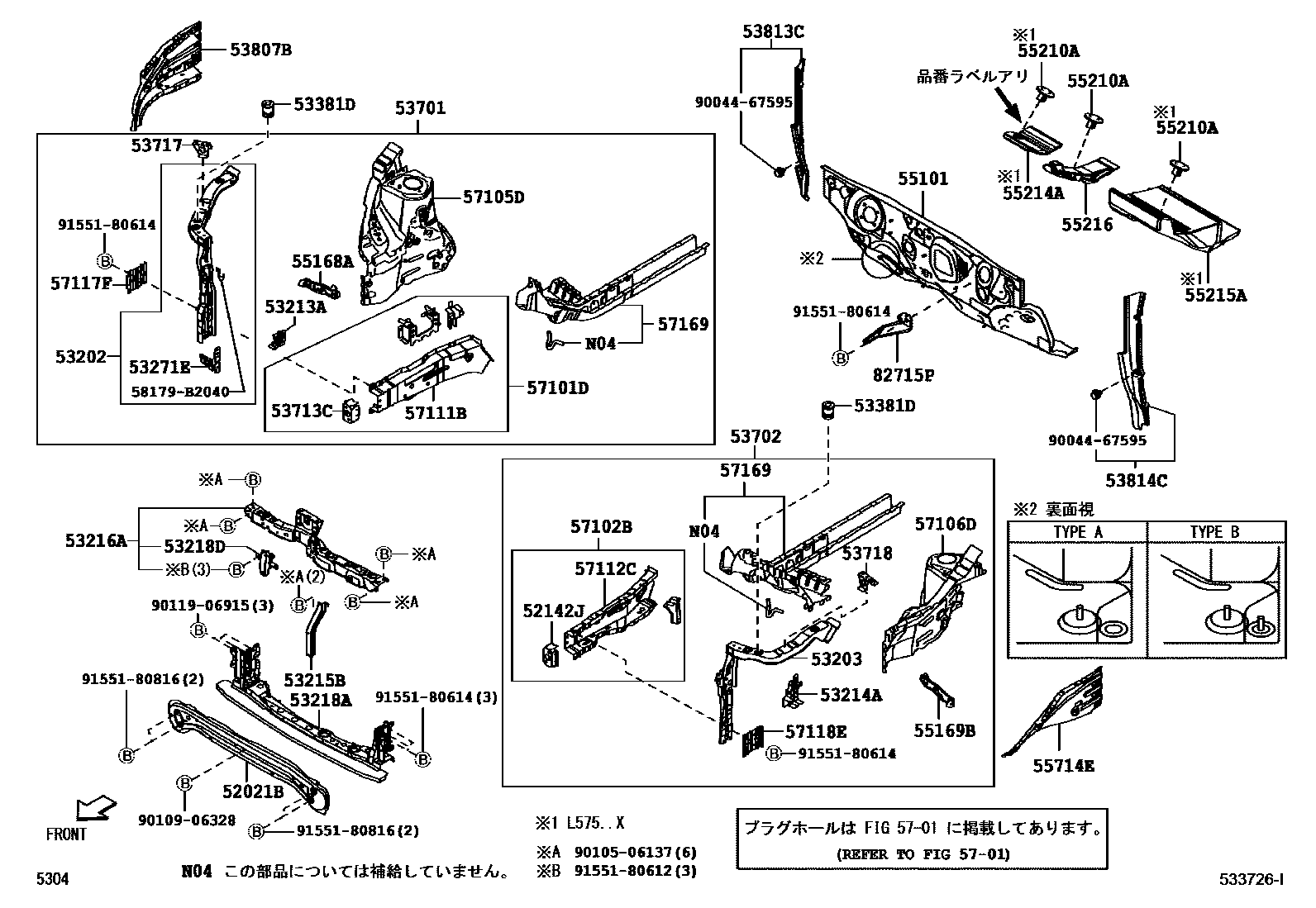

Toyota PIXIS SPACE — FRONT FENDER APRON & DASH PANEL

Parts diagram

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-B2020i201109-201306

52142JARM, FRONT BUMPER, UPPER LH

main52142-B2010i201306

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B2150i201109-201204

main53202-B2151i201306

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B2130i201109-201205

main53203-B2131i201205-201306

53213ASUPPORT, RADIATOR, UPPER RH

main53213-B2020i201109-201204

53214ASUPPORT, RADIATOR, UPPER LH

main53214-B2080i201306

53215BSUPPORT, HOOD LOCK

main53215-B2080i201109-201306

53216ASUPPORT, RADIATOR, UPPER

main53205-B2150i201109-201205

main53205-B2151i201306

53218ASUPPORT, RADIATOR, LOWER

main53028-B2090i201109-201205

main53028-B2201supersedes 53028-B2181i201306

53218DEXTENSION, HOOD LOCK BRACE

main53218-B2060i201109-201204

main53218-B2061i201205-201306

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-B2010i201109-201306

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-97205×2i201109-201205

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-B2280i201109-201204

main53701-B2281i201306

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-B2260i201109-201205

main53702-B2261i201306

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53077-B2030i201109-201205

53717PLATE, FENDER APRON, RH

main53717-B2040i201109-201205

53718PLATE, FENDER APRON, LH

main53717-B2040i201109-201205

53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53803-B2130i201306

53813CEXTENSION, FRONT FENDER, RH

main53813-B2070i201306

53814CEXTENSION, FRONT FENDER, LH

main53814-B2070i201306

55101PANEL SUB-ASSY, DASH

main55101-B2462i201206-201306

main55101-B2463i201109-201206

main55101-B2471i201306

main55101-B2481i201306

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-B2130i201109-201205

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-B2120i201109-201204

55210ACLIP

main58199-B2010-C0i201306

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-B2120i201109-201206

main55214-B2130i201206-201306

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-B2010i201109-201204

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-B2010i201109-201204

55714EPANEL, COWL TOP SIDE, LH

main55714-B2160i201109-201306

5701HOLE PLUG

→ Go to FIG 57-01

57101DMEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B2120i201109-201204

57102BMEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B2150i201306

57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-B2100i201109-201204

main57105-B2101i201205-201306

57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-B2140i201109-201204

main57106-B2141i201205-201306

57111BMEMBER, FRONT SIDE, RH

main57111-B2040i201109-201306

57112CMEMBER, FRONT SIDE, LH

main57112-B2050i201109-201205

57117FPLATE, FRONT SIDE MEMBER, NO.2 RH

main57117-B2020i201109-201204

57118EPLATE, FRONT SIDE MEMBER, NO.2, LH

main57117-B2020i201109-201205

57169MEMBER, FRONT FLOOR, FRONT RH

main57406-B2110i201109-201306

main57409-B2130i201109-201306

82715PBRACKET, WIRING HARNESS CLAMP

main82715-B2160i201109-201306

58179B2040STAY, FRONT CROSSMEMBER TO LOWER SHROUD, LH

main58179-B2040

9004467595

main90044-67595

9010506137

main90105-06137

9010906328

main90109-06328

9011906915

main90119-06915

9155180612

main91551-80612

9155180614

main91551-80614

9155180816

main91551-80816

47 parts on this diagram · 1 diagram in section
