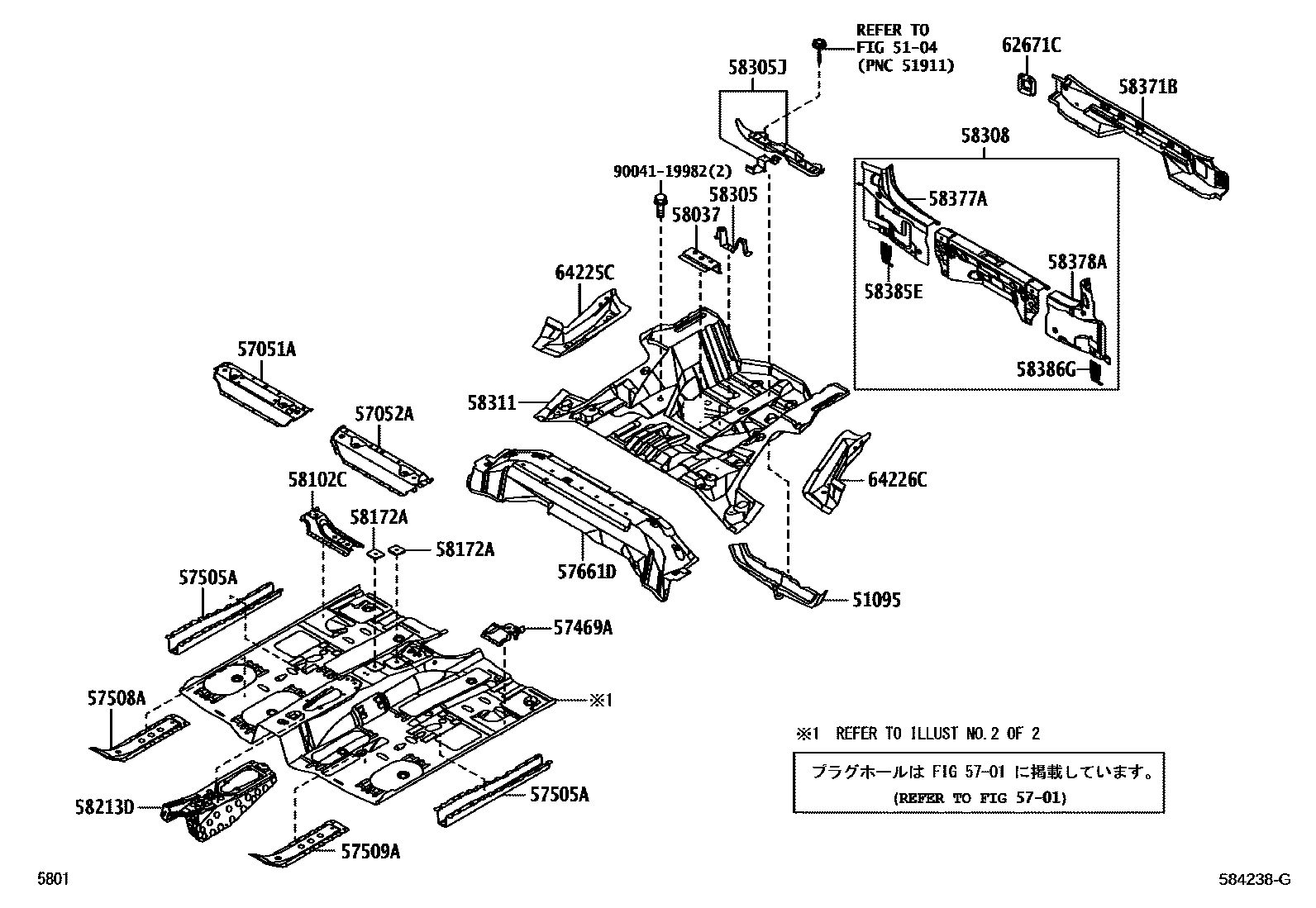

Toyota PIXIS SPACE — FLOOR PAN & LOWER BACK PANEL
5104SPARE WHEEL CARRIER
5701HOLE PLUG
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
58037REINFORCEMENT SUB-ASSY, REAR FLOOR PAN
58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58172APLATE, PARKING BRAKE MOUNTING
58213DREINFORCEMENT, CENTER FLOOR PANEL
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58371BPANEL, BODY LOWER BACK, OUTER
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
58385EBRACKET, REAR BUMPER COVER, RH
58386GBRACKET, REAR BUMPER COVER, LH
62671CCOVER, LOWER BACK PANEL
64225CPATCH, REAR SEAT SET, RH
64226CPATCH, REAR SEAT SET, LH
9004119982
main90041-19982
27 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota PIXIS SPACE
This section contains 34 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota PIXIS SPACE. Key components include: SPARE WHEEL CARRIER, HOOK, TRANSPORT, REAR, HOLE PLUG, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH.
