Toyota PIXIS SPACE — ELECTRONIC HEIGHT CONTROL

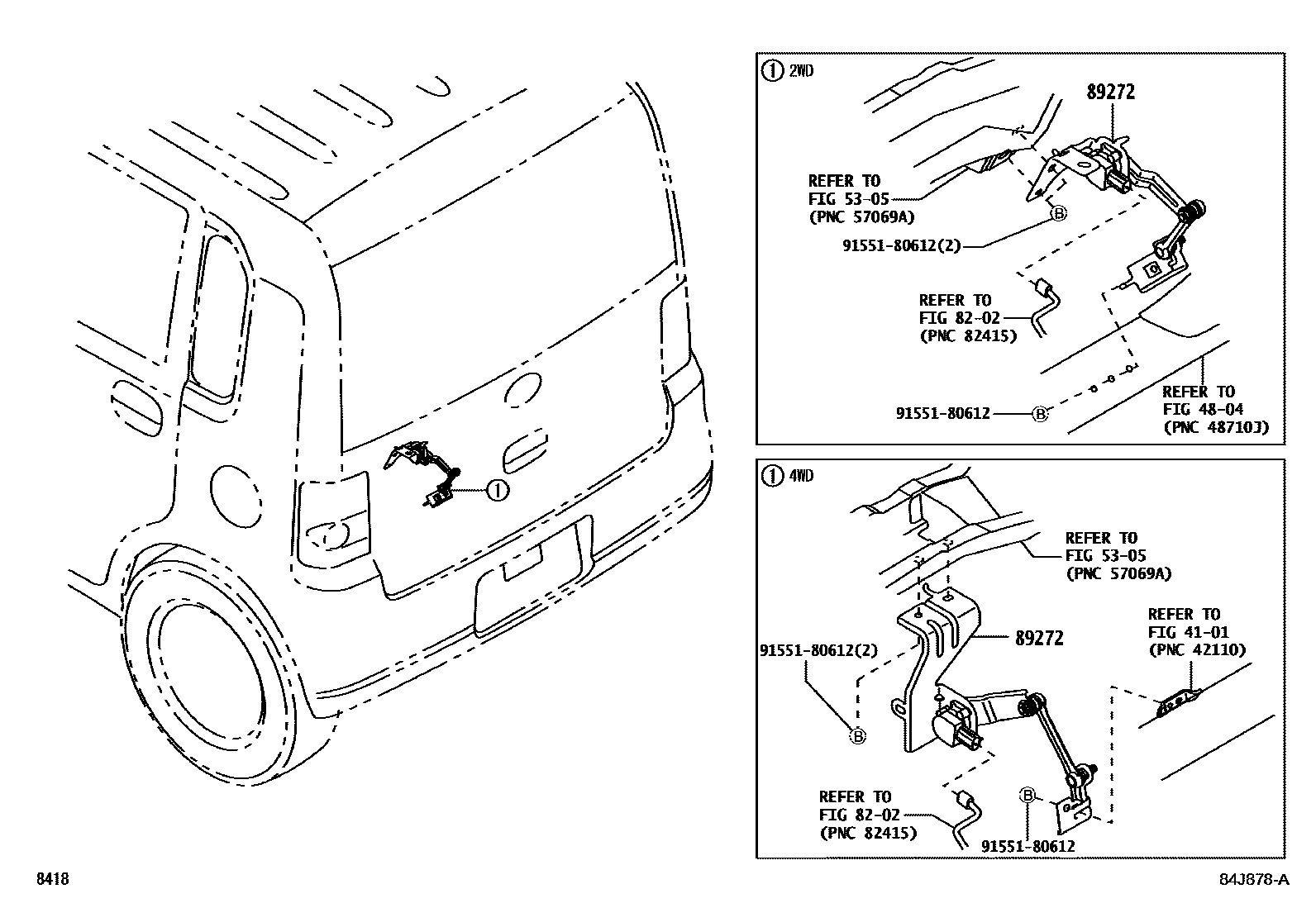

Parts diagram
4101REAR AXLE HOUSING & DIFFERENTIAL
→ Go to FIG 41-01
4804REAR SPRING & SHOCK ABSORBER
→ Go to FIG 48-04
5305FLOOR SIDE MEMBER
→ Go to FIG 53-05
8202WIRING & CLAMP
→ Go to FIG 82-02
89272SENSOR, HEIGHT CONTROL
main89408-B2050i201109-201306
main89408-B2060i201109-201306
9155180612
main91551-80612

6 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota PIXIS SPACE

This section contains 6 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota PIXIS SPACE. Key components include: REAR AXLE HOUSING & DIFFERENTIAL, REAR SPRING & SHOCK ABSORBER, FLOOR SIDE MEMBER, WIRING & CLAMP, SENSOR, HEIGHT CONTROL.
