Toyota PIXIS SPACE — ELECTRONIC FUEL INJECTION SYSTEM

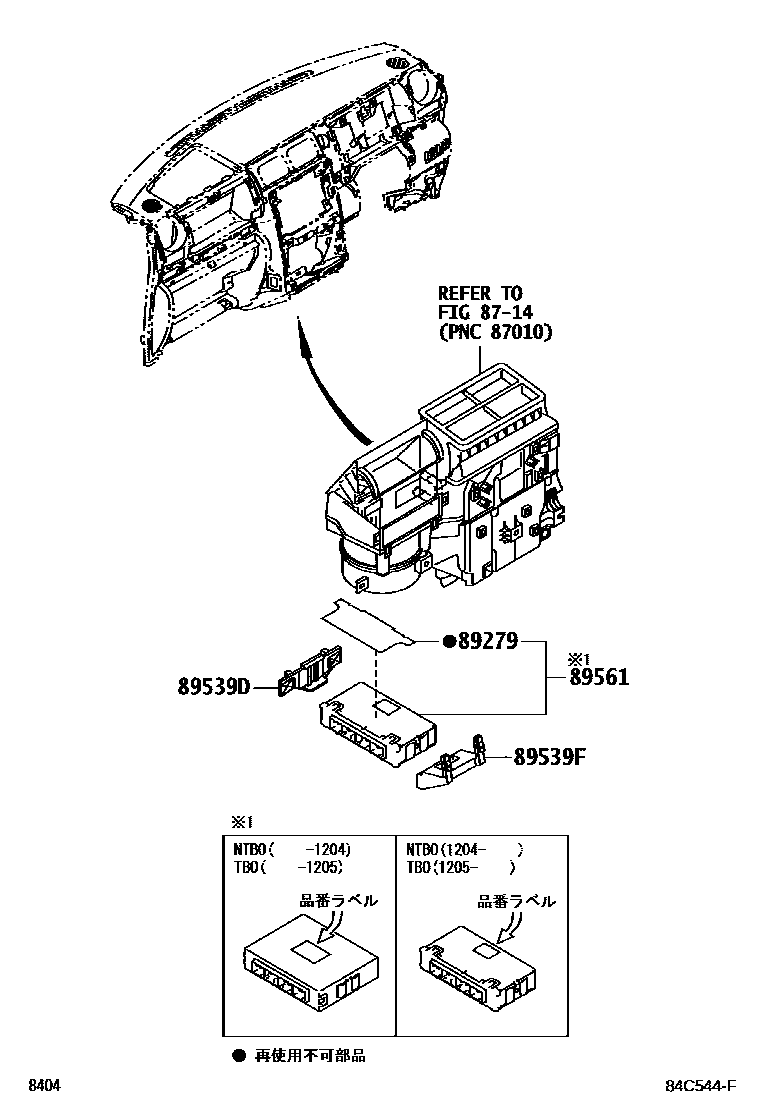

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

89279COVER, ENGINE CONTROL COMPUTER

main89279-B1030i201306-201701

main89279-B2020i201109-201205

main89279-B2030i201109-201110

89539DBRACKET, COMPUTER

main48141-B2040i201109-201306

89539FBRACKET, COMPUTER

main48142-B2030i201109-201306

89561COMPUTER, FUEL INJECTION

main89560-B2R34i201109-201112

main89560-B2R35i201201-201205

main89560-B2R44i201109-201112

main89560-B2R45i201201-201205

main89560-B2Z52i201109-201111

main89560-B2Z53i201112-201204

main89560-B2Z62i201109-201111

main89560-B2Z63i201112-201204

main89560-B2Z72i201109-201111

main89560-B2Z73i201112-201204

main89560-BA231i201204-201212

main89560-BA241i201204-201212

main89560-BA251i201204-201212

main89560-BA261i201204-201212

main89560-BA351i201205-201209

main89560-BA352i201210-201212

main89560-BA440i201212-201306

main89560-BA450i201212-201306

main89560-BA460i201212-201306

main89560-BA470i201212-201306

main89560-BA730i201212-201306

main89560-BAA50i201306-201307

main89560-BAA51i201308-201602

main89560-BAA60i201306-201307

main89560-BAA61i201308-201602

main89560-BAA70i201306-201307

main89560-BAA71i201308-201602

main89560-BAA80i201306-201307

main89560-BAA81i201308-201602

main89560-BAA90i201306-201307

main89560-BAA91i201308-201602

main89560-BAX10i201602

main89560-BAX20i201602

main89560-BAX30i201602

main89560-BAX40i201602

main89560-BAX50i201602

5 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota PIXIS SPACE

This section contains 5 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota PIXIS SPACE. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, COVER, ENGINE CONTROL COMPUTER, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION.
