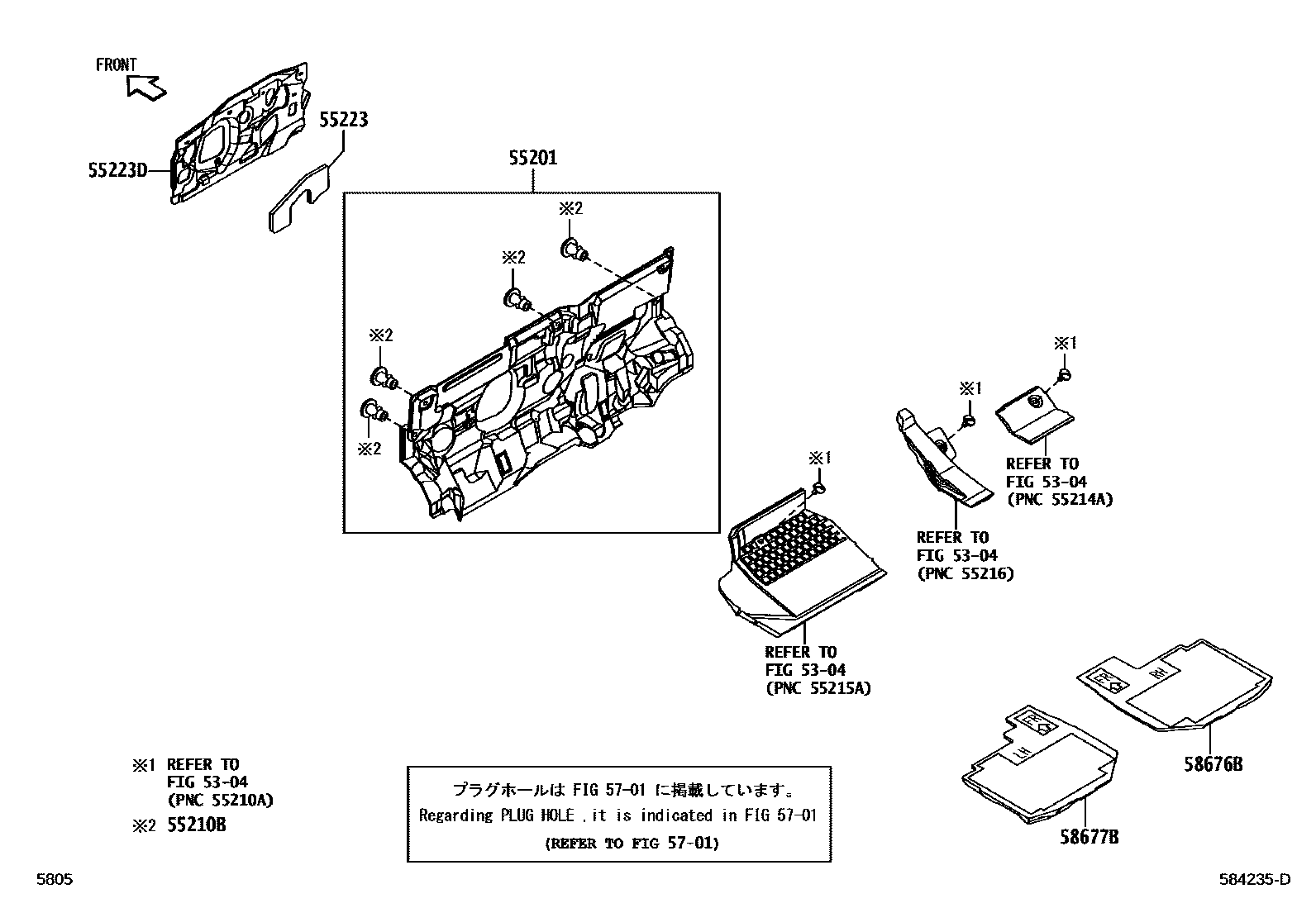

Toyota PIXIS SPACE — DASH SILENCER BOARD & FLOOR SILENCER PAD

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-B2210i201109-201207

main55210-B2211i201208-201306

55210BCLIP(FOR DASH PANEL SILENCER BOARD)

main90467-11122×4i201109-201204

55223PAD, DASH PANEL SILENCER, UPPER

main55213-B2050i201109-201204

55223DINSULATOR, DASH PANEL, OUTER

main55223-B2080i201109-201204

5701HOLE PLUG

→ Go to FIG 57-01

58676BPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-B2100i201109-201204

main58676-B2140i201109-201306

58677BPAD, REAR FLOOR SILENCER, NO.1 LH

main58677-B2110i201109-201205

main58677-B2130i201306

8 parts on this diagram · 1 diagram in section

DASH SILENCER BOARD & FLOOR SILENCER PAD for Toyota PIXIS SPACE

This section contains 8 genuine Toyota parts for the DASH SILENCER BOARD & FLOOR SILENCER PAD system of the Toyota PIXIS SPACE. Key components include: FRONT FENDER APRON & DASH PANEL, BOARD SUB-ASSY, DASH PANEL SILENCER, CLIP(FOR DASH PANEL SILENCER BOARD), PAD, DASH PANEL SILENCER, UPPER, INSULATOR, DASH PANEL, OUTER.
