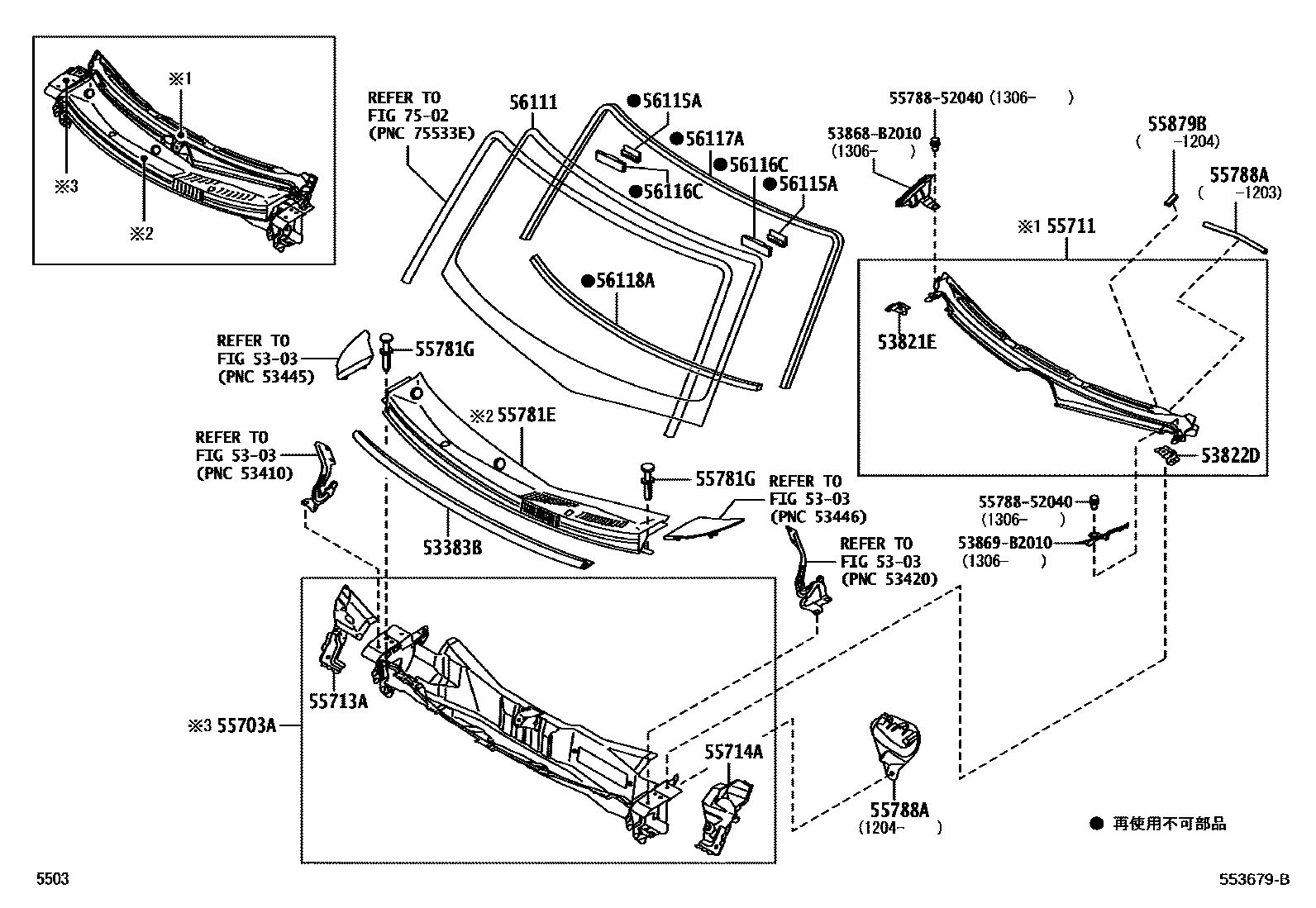

Toyota PIXIS SPACE — COWL PANEL & WINDSHIELD GLASS
5303HOOD LOCK & HINGE
53383BSEAL, HOOD TO COWL TOP
53821EBRACKET, FRONT FENDER, REAR RH
53822DBRACKET, FRONT FENDER, REAR LH
55703APANEL SUB-ASSY, COWL TOP, INNER
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55879BSEAL, COWL VENT
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
7502FRONT MOULDING
53868B2010SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
main53868-B2010
53869B2010DUCT, FRONT FENDER
main53869-B2010
5578852040CLIP, COWL VENTILATOR LOUVER, OUTER
main55788-52040
21 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota PIXIS SPACE
This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota PIXIS SPACE. Key components include: HOOD LOCK & HINGE, SEAL, HOOD TO COWL TOP, BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH.
