Toyota PIXIS SPACE — AIR BAG

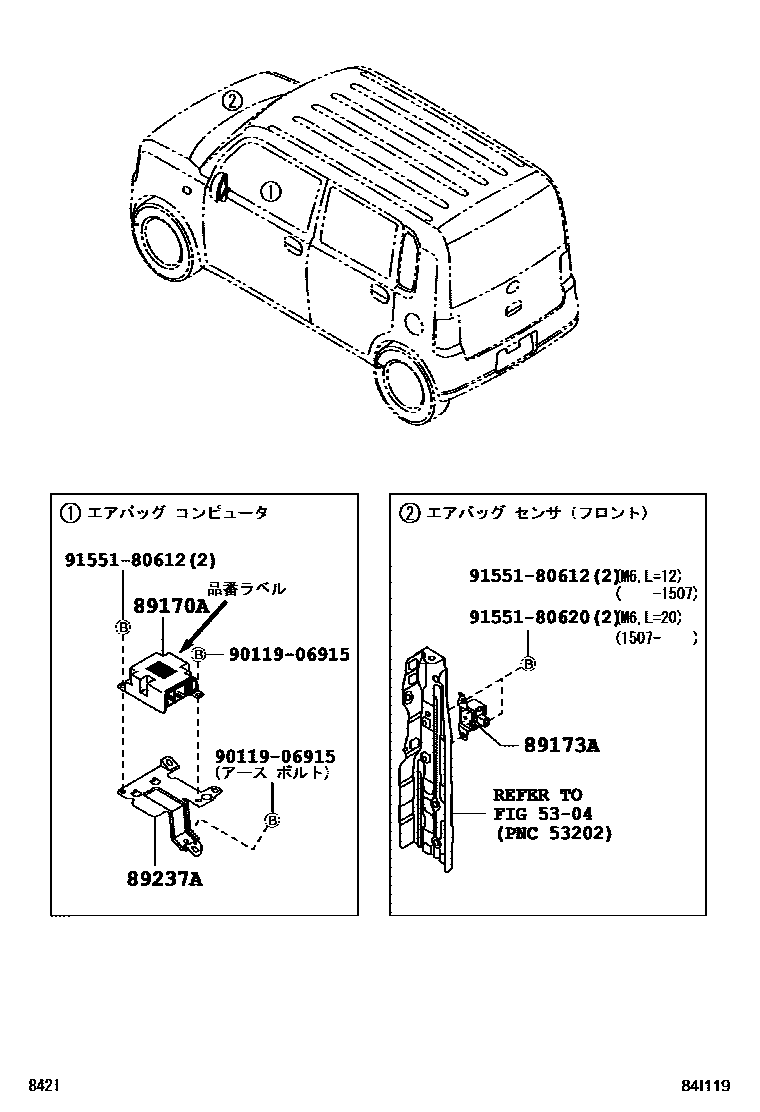

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

89170ACOMPUTER ASSY, AIRBAG

main89170-B2881i201109-201205

main89170-B2C00i201204-201306

89173ASENSOR, AIRBAG, FRONT RH

main89173-B2120i201109-201204

89237ABRACKET, COMPUTER UNIT

main89237-B2060i201109-201204

main89237-B2110i201311

9011906915

main90119-06915

9155180612

main91551-80612

9155180620

main91551-80620

7 parts on this diagram · 1 diagram in section

AIR BAG for Toyota PIXIS SPACE

This section contains 7 genuine Toyota parts for the AIR BAG system of the Toyota PIXIS SPACE. Key components include: FRONT FENDER APRON & DASH PANEL, COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, BRACKET, COMPUTER UNIT.
